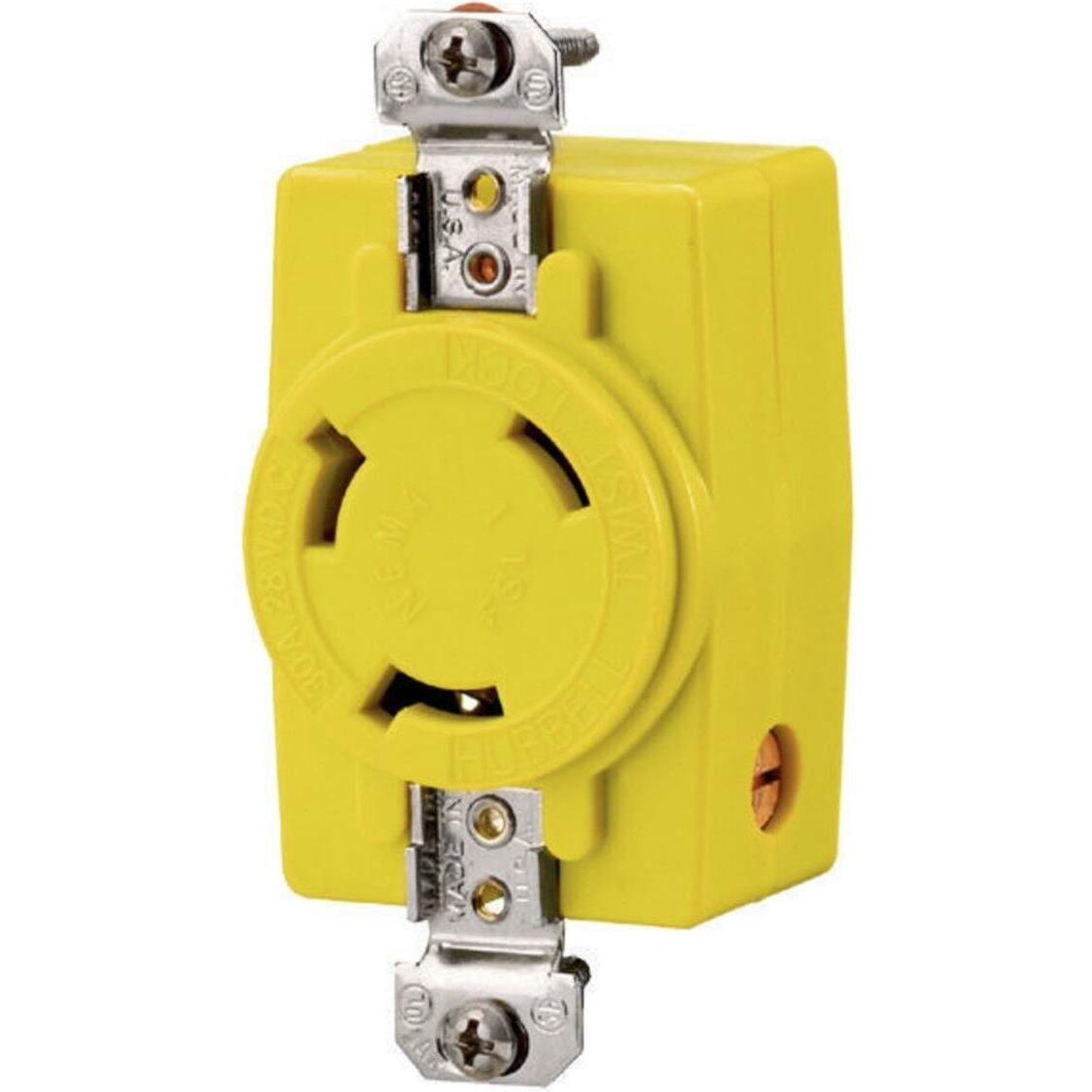

Hubbell NEMA Twist-Lock Receptacle - 24-32V DC - HBL328DCR

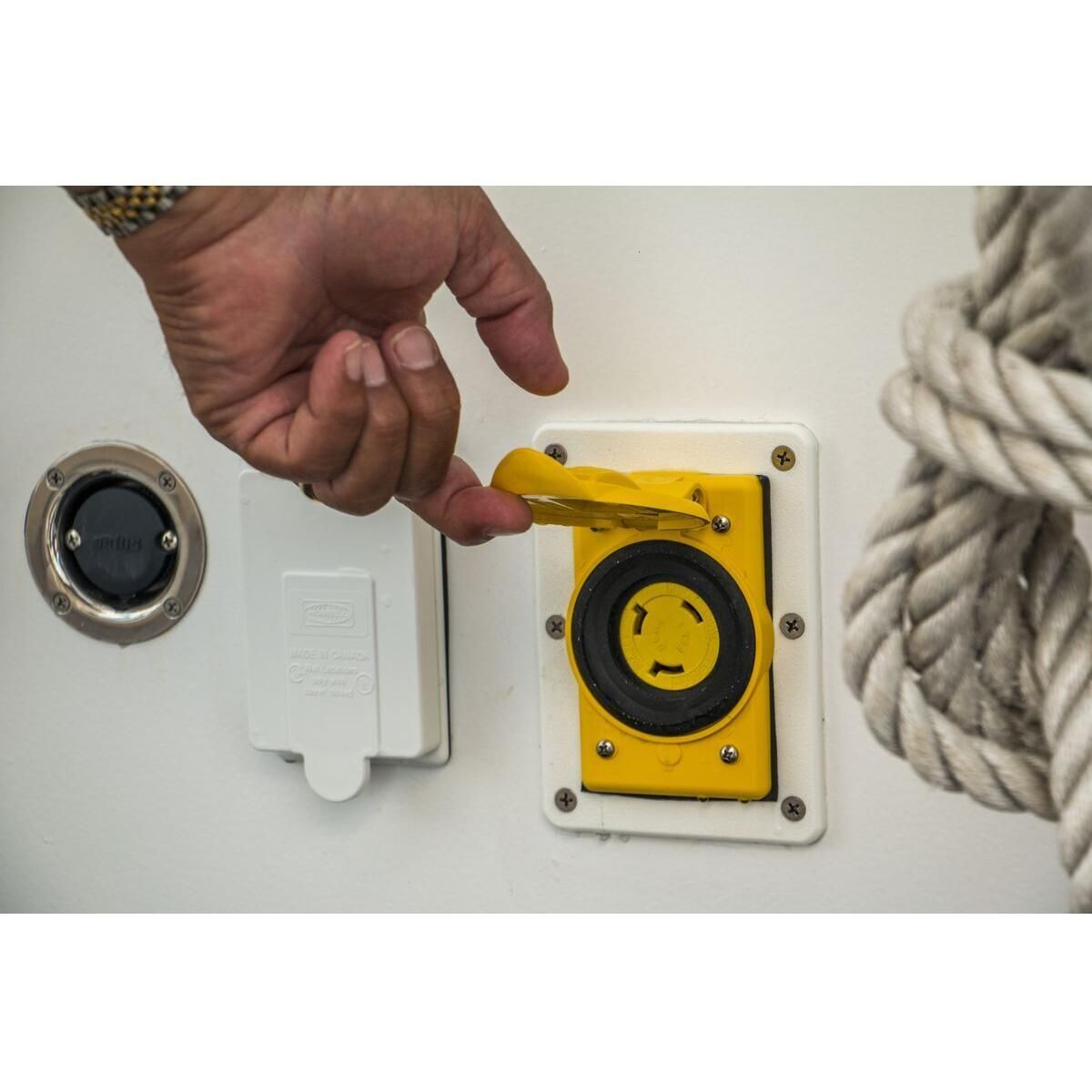

Hubbell has a DC rated electrical system designed specifically for larger electric fishing reel systems. Up until now, larger electric fishing reel systems typically utilized conventional 30A AC rated devices since an appropriately rated DC system was not available. The system features a corrosion-resistant plug, connector body and receptacle and can be used along with a Hubbell outlet box and weatherproof cover plate to complete the installation. These devices are all rated at 28V DC and applicable for all 12, 24 and 32V DC fishing reel systems. The devices are UL listed and CSA certified. All devices are made of high-visibility yellow nylon that is impact resistant and UV stabilized for longer life. Also, the contacts are nickel plated for corrosion resistance.

Specifications:

• Application: Electric fishing reel devices
• Color: Yellow
• Environmental Conditions: Weather Resistant
• EU RoHS Indicator: Yes
• Item Type: Single
• Material: Thermoplastic
• Mounting Hardware: Screw mounting
• Number of Poles: 2-Pole
• Connectivity: Screw terminals
• Amperage Rating: 30A
• Current Rating: 30A
• Phase: Single Phase
• Voltage Rating: 28V DC kV
• Wattage: 840W
• Number of Wires: 3-Wire Grounding
• Wire Size: #10 AWG

Certifications and Compliance:

• Industry Standard(s): UL Listed
• NEMA Rating: Non-NEMA
• RoHS Compliance Status: CM

Dimensional Drawing
