Husky Ascend Trailer Brake Control - 31624

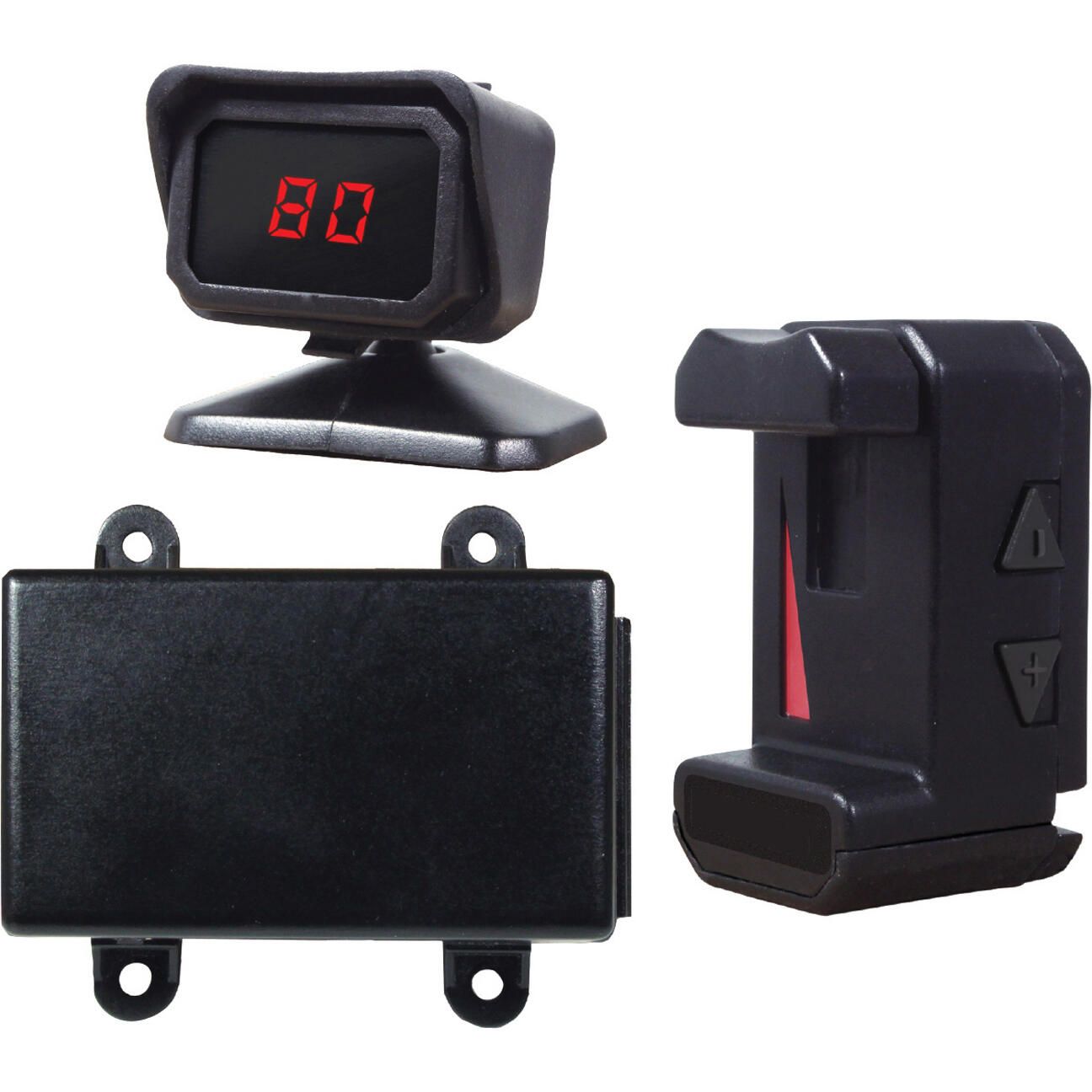

Husky Ascend puts your trailer brake control within easy reach so you can safely keep your eyes on the road. The modular design lets you mount the LED display and controller wherever they are most accessible to you, while the system's electronic brain is mounted out of site. Advanced proportional control technology mirrors the braking action of the tow vehicle. On-the-fly sensitivity adjustment with 7 settings for different loads and driving conditions.

LED Display:

• Can be located directly within your field of vision for optimal viewing
• Compact size mounts independent of the other two components for better placement
• Mounts to dash for safer heads-up viewing
• Wiring is hidden and routed on the A-pillar
• Adjustable to set driver's best viewing angle

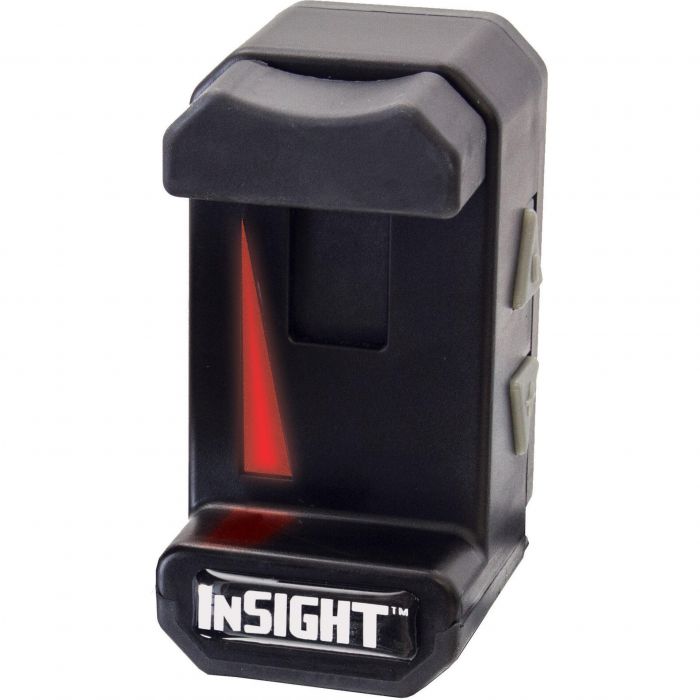

Manual Brake Conrol:

• Mount within easy reach of either hand
• Use the manual slide to activate the brakes
• Mount for either right or left hand dexterity
• Slide indicators are back-lit and glow at night for easier visibility

Electronic Brain:

• Can be mounted completely out of sight
• Inertia and brake pedal activation
• Dual-axis accelerometer with forward and reverse proportional/progressive braking
• 8-brake capacity
• Short protected
• Mounts under dash to multiple surface types 360 deg. vertical and 10 deg. horizontal range
• Requires no leveling
• Quick-connect plug included

Specifications:

• Accommodated Number Of Trailer Axles: 1 To 4 Axles
• Type: Proportional
• Brake Systems Type: 2 To 8 Brake System
• Reverse Function: Fully Functional In Reverse
• Leveling: Automatic
• Smart Technology Compatible: No
• Display: LED Screen
• With Trailer Disconnect Alarm: No
• With Wiring Harness: No

Installation Instructions (2.16 MB)
