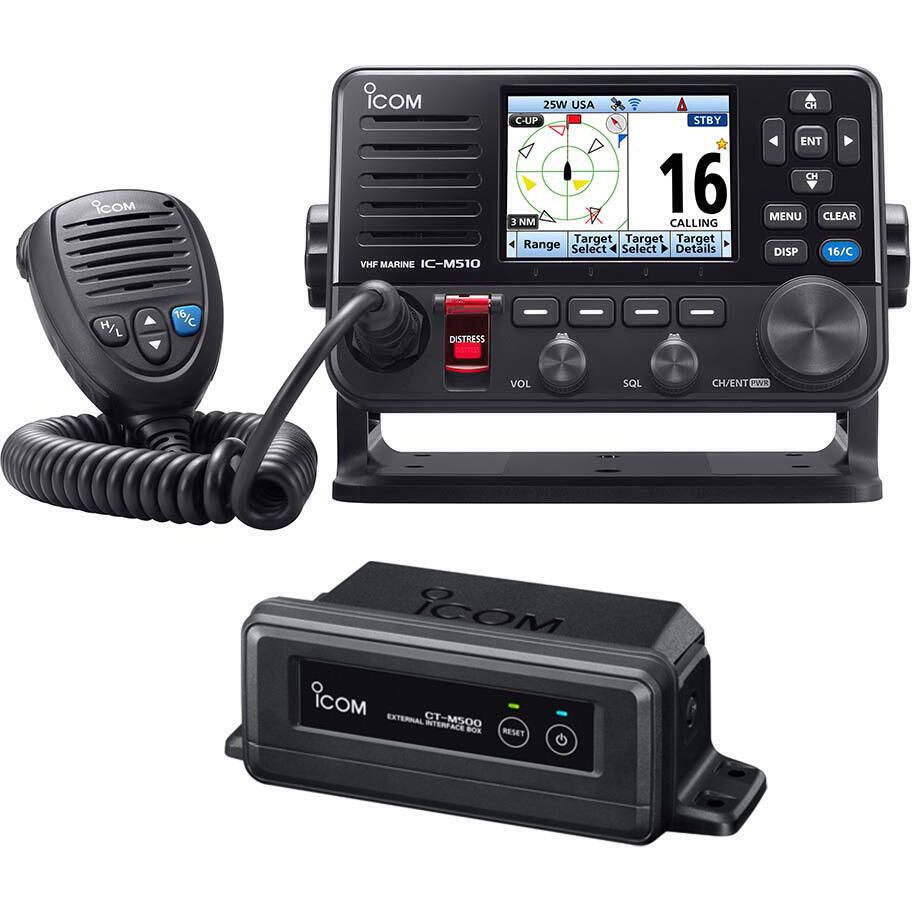

Icom IC-M510 VHF Marine Transceiver and Wireless Interface Box Bundle

Icom's new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse available with or without AIS receive capability. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android™ smart devices with class leading features such as wireless calling. Connect to NMEA 2000 with the CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement.

Features:

• AIS information display (An external AIS receiver or an external NMEA sentence is required)
• New Sleek Design
• Wide (nearly 180 degree) viewing angle color TFT LCD with night mode
• Simplified navigation function
• Clear, Loud Audio
• White light backlit keys for increased visibility in low-light and dark conditions
• Integrated GPS receiver
• Active Noise Canceling
• NMEA 0183/-HS built-in
• Integrated GNSS receiver (Selectable from either internal receiver or use UX-241 GNSS antenna)
• IP68 advanced waterproofing (1 m depth of water for 60 minutes)
• Voice Scrambler with optional UT-112A
• AquaQuake™ prevents audio degradation from a water-logged speaker
• Supplied speaker-microphone, HM-205RB can be connected to the rear panel
• External speaker connection
• Controlled with COMMANDMIC™
• Supports 4-digit channels

Included:

• M510 VHF marine transceiver
• CT-M500 wireless interface box
• Speaker microphone, HM-205RB
• Microphone hanger
• DC Power cable
• Mounting bracket kit

IC-M510 Instruction Manual

CT-M500 Instruction Manual
