Imtra "Mini" Bayonet LED Replacement Bulb - ILBA1156-06W

Imtra's "Mini" Bayonet LED provides a compact g-LED SMD design, optimized with viewing angles and single-contact bayonet for directional reading lights and chart lamps.

Features:

• LED replacement for bulbs with back-mounted single-contact bayonet sockets
• Compact 6-LED SMD design with optimized viewing angle for directional reading lights and chart lamps
• High-output thermally efficient SMDs and built-in electrical protections combine to deliver maximum service life
• Benefits include cooler cabin temperatures, bright light output and substantial power savings
• Compatible with DMS Series Dimmer (see dimmer compatibility chart)
• 2-year limited warranty

Specifications:

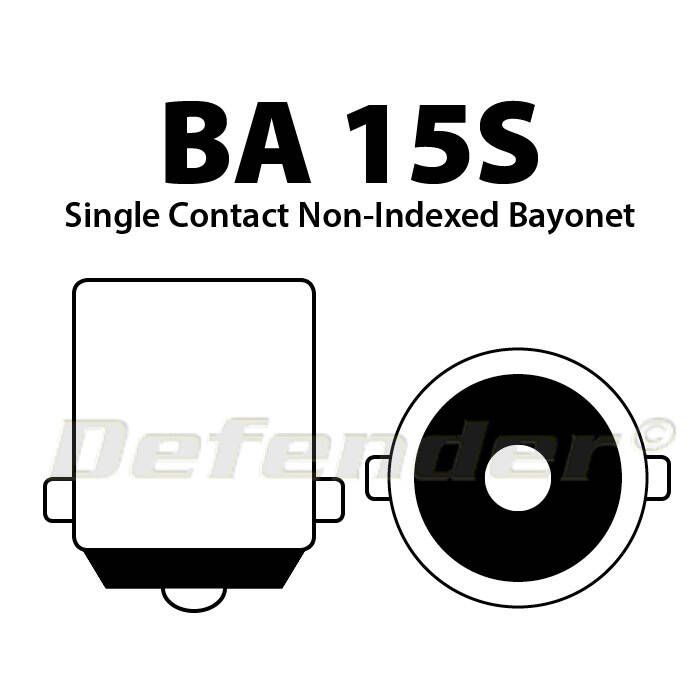

• Base / Socket: Single-contact bayonet non-indexed BA15S
• Brightness: 70 Lumens
• LED Light Color: Warm white
• Beam Angle: 120°
• Nominal Voltage: 12 / 24V DC
• Operating Voltage: 10 - 30V DC
• Power Consumption: 1.5W
• Halogen Equivalent: 10W
• Current Draw: 125 mA @ 12V DC / 63 mA @ 24V DC
• Regulatory: CE, RoHS
• Dimensions: 1.05" dia. x 1.43" including base
