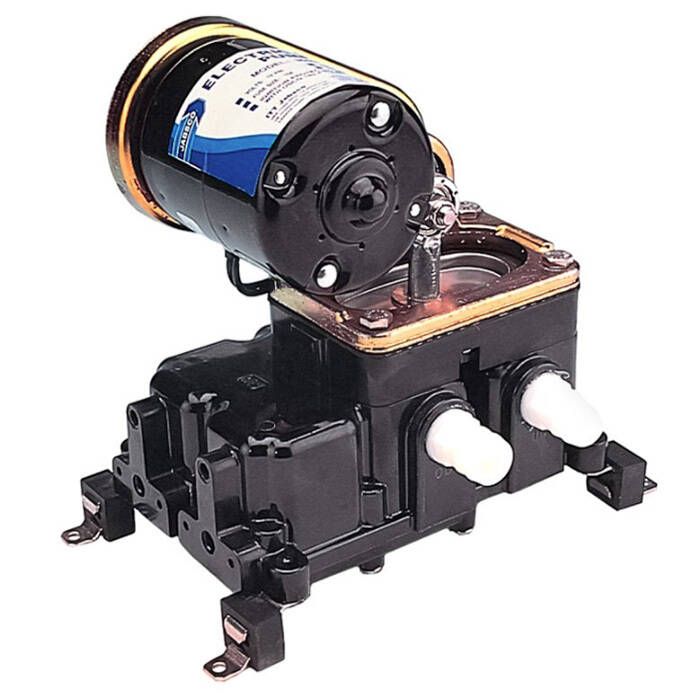

Jabsco 36600 Series Diaphragm Non-Automatic Bilge Pump

Features:

• Jabsco 36600-Series Diaphragm Bilge Pumps are self-priming, so they can be mounted above and outside of harsh bilge environments
• Diaphragm pump design allows dry running
• Pumpgard inlet strainer supplied with pump
• Intake hose can be routed to lowest point of the bilge regardless of space limitations
• Quiet operation
• Permanently lubricated ball bearings on shaft and connecting rod
• Large vibration-absorbing pads
• Corrosion resistant materials used throughout for sea water service
• Meets USCG Regulation 183.410 and ISO 8846 Marine ignition protection standards

Specifications:

• Flow Rate: 8 GPM
• Port Size: 3/4"
• Dimensions: 8-1/4" H x 7" W x 5-1/4" D
• Nominal Voltage: 12 or 24V DC
• Max. Current Draw:
  • 11 Amps @ 12V DC
    • Recommended Fuse: 15 Amp
  • 5.5 Amps @ 24V DC
    • Recommended Fuse: 8 Amp
