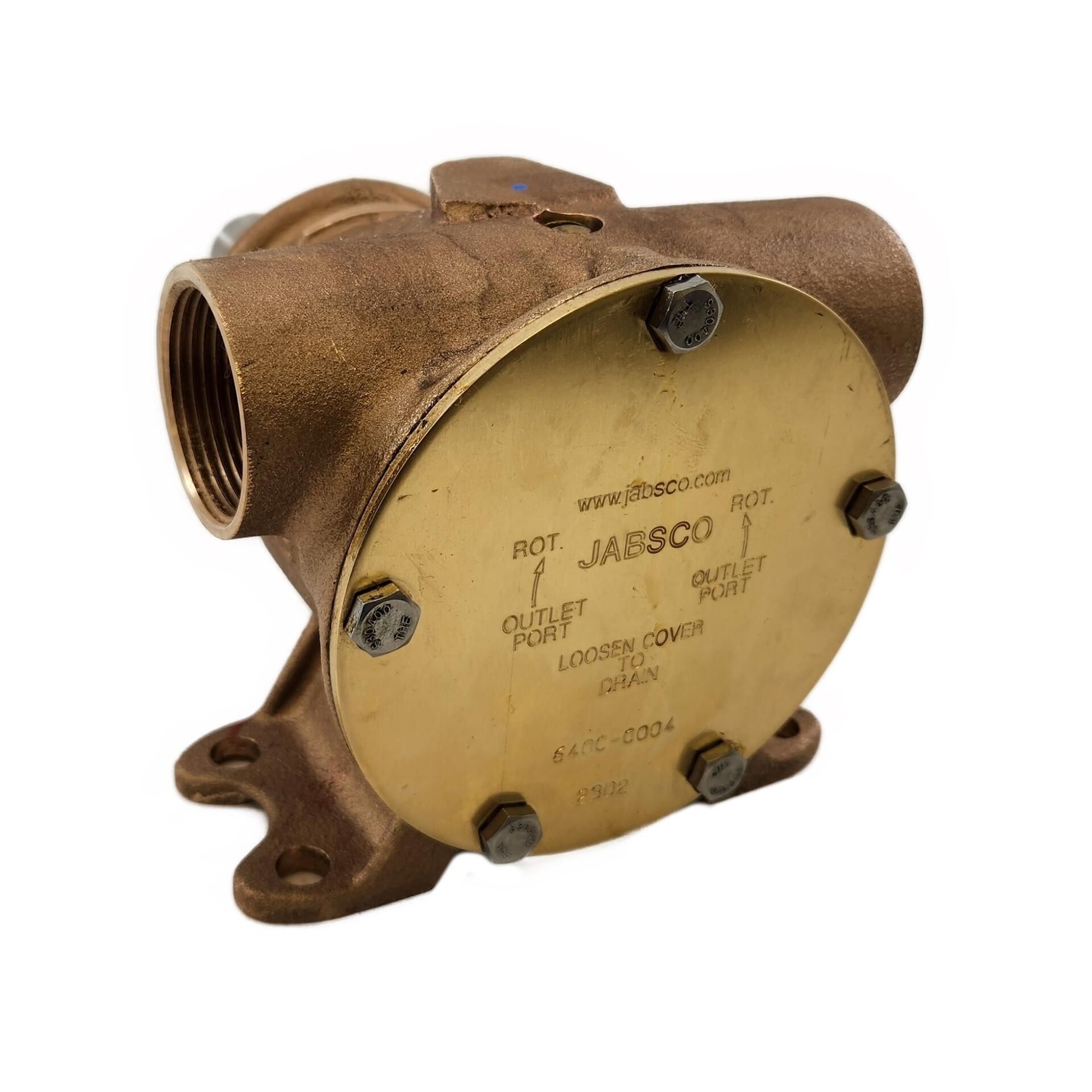

Jabsco Flexible Impeller Pedestal Pump - 6400-0004

Jabsco's 6400-0004 is a bronze flexible Impeller engine cooling pump with a neoprene impeller, carbon/ceramic mechanical seal, and 1 1/4" NPT internal ports. This pump has a nominal flow rate of 62 Gal/min (235 L/min) at 1,750 RPM, and primes at low or high speeds.

Features:

• Double row ball bearing
• Self-priming up to 10' vertical lift
• Mechanical seal
• Constructed from marine quality bronze and stainless steel
• Easy to service and maintain
• Tolerates abrasive wear
• Will not airlock

Specifications:

• Body: Bronze
• Impeller: Neoprene
• Shaft: Type 316 Stainless steel
• Wearplate: Replaceable
• Shaft seal: Carbon-ceramic face type
• Bearing: Pre-lubricated double row ball
• Ports: 1 1/4" (32 mm) NPT internal
• Weight: 10.5 lbs (4.8 kg) approx.
• Temperature: 45° - 180° F (7° - 82° C)

Installation and Operation Manual (1.29 MB)
