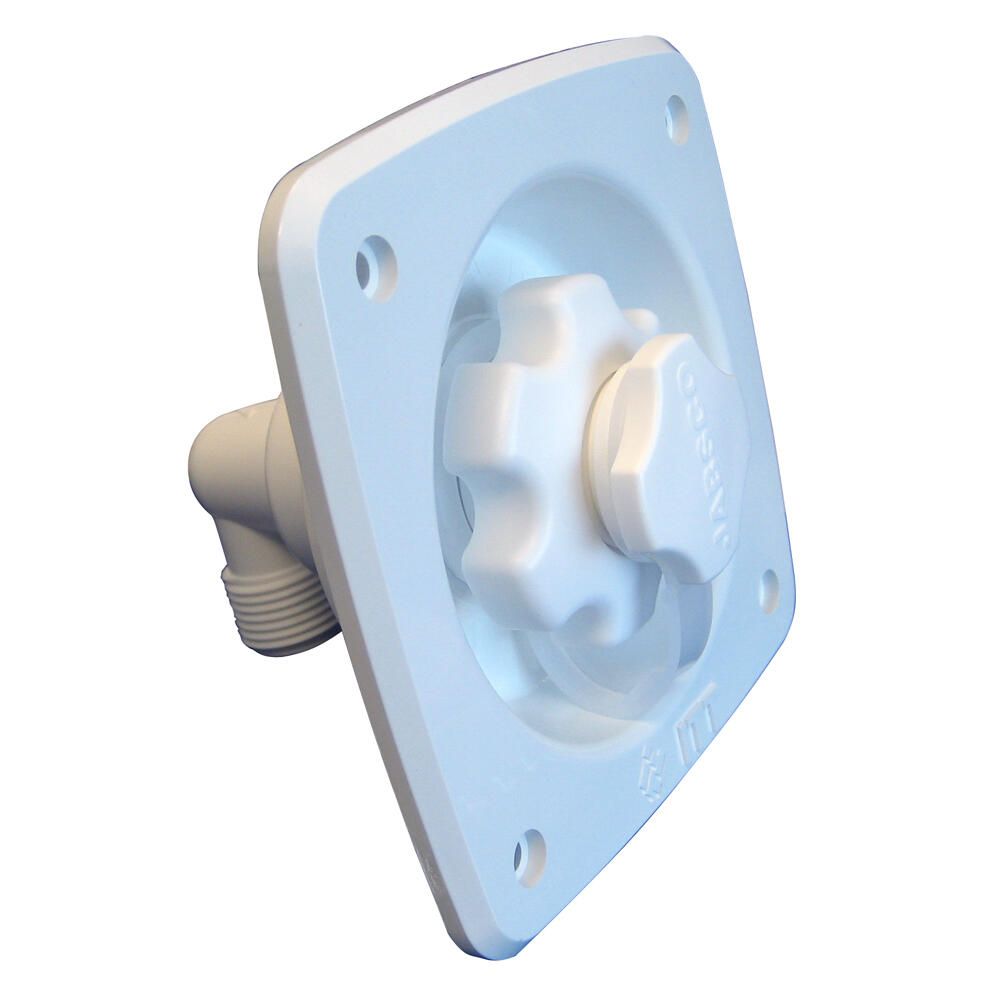

Jabsco Water Pressure Regulator - 44411-1045

Designed for day and night protection of the entire plumbing system from unregulated city water system hook-ups. Whether connected to a dock-side main or a campground faucet, the new Jabsco Regulator will maintain regulated output at low or high flow rates. The removable strainer protects valves and seal-seats from pipe scale and other debris.

Features:

• Water Pressure Regulators protect your boat's water system from damaging pressures of unregulated city water hook-ups
• Reduces unregulated city water pressures that can run as high as 125 psi down to a safe 45 psi - automatically
• Features built-in backflow preventer. Federal and State required on RV's with water service hookup
• Includes GHT ( Garden Hose Thread ) fittings for potable garden hose connection.
• Limits inlet water pressure to 45 psi (3.1bar)
• Maintains regulated pressure at various flow rates
• Compact in-line model only 3" (77mm) long
• Built-in port strainer is easily cleanable
• Manufactured of food-grade materials
• Meets all applicable codes and approvals
• Removable strainer protects plumbing

Specifications:

• Water pressures from 46-125 psi (3-10 bar) will be regulated down to 45 psi (3 bar)
• Lower pressures will pass through unregulated
• Variance is ± 5 psi (0.3 bar)
• Fitting: Flush, 3/4 GHT(f) inlet and 1/2"-14 pipe 90º swivel-elbow outlet
• Materials: UV-resistant plastic, crack resistant mounting flange
• Working Temperature: 33-150º F (1-65ºC)

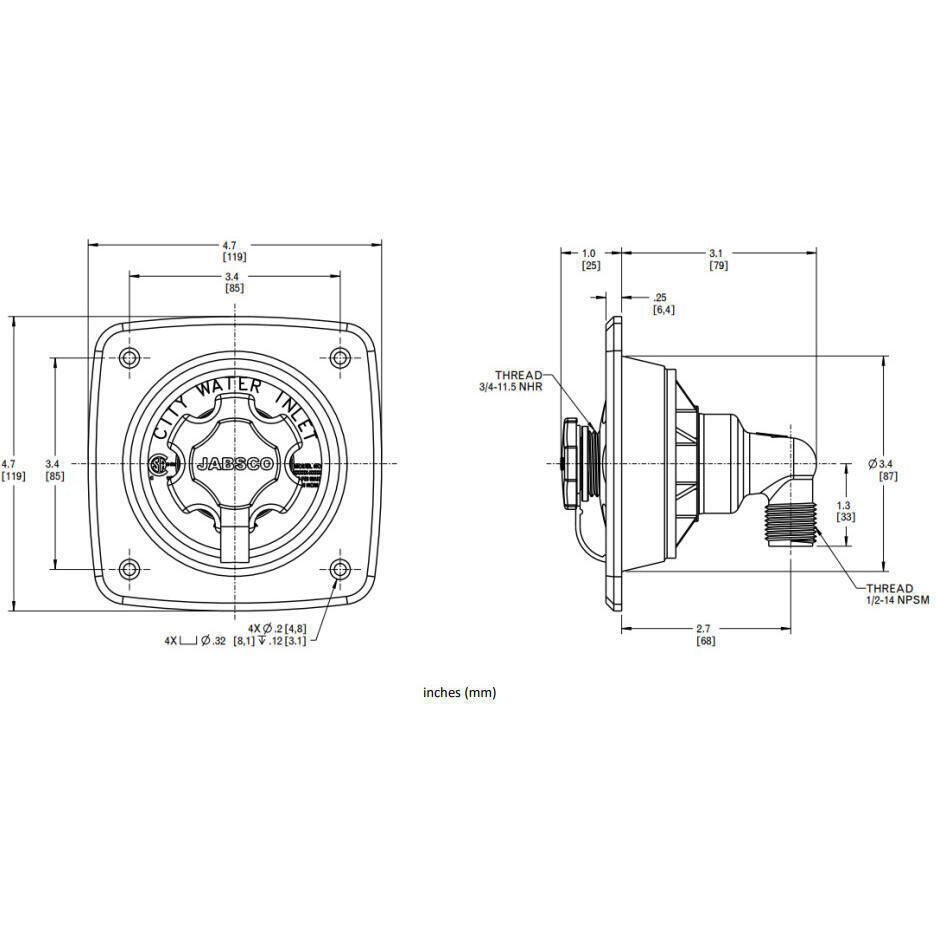

Dimensions Diagram
