Lectrotab Retrofit Trim Tab Kit for Bennett

Lectrotab's Retrofit Trim Tab Kit is designed to upgrade or replace Bennett hydraulic trim tab systems while reusing the original trim tabs. The task of retrofitting is made even easier, now you don't have to buy a new boat or an entire new set of trim tabs to get all the advantages of the latest in trim tab technology.

Features:

• Direct replacement for Bennett's 4-ring standard trim tab actuators
• Reuses existing Bennett wiring from actuator to display
• Simple and convenient to install - reuses existing Bennett actuator mounting holes and trim tabs
• Actuator: Electric
• Microprocessor based trim tab control with LED tab position indicators
• Single button press to move both tabs up or down simultaneously
• Automatic return to last tab position if ignition key is turned off and back on again
• Automatic tab retraction and calibration with key or accessory switch off
• Actuators connect directly to SLC-11 display panel (no external power module box required)
• Made in USA

SLC-11 Control Switch

• Controller color: Black
• Number of control stations: 1 or 2
• Actuators per tab plate: 1 or 2
• Overall width: 3.0" (77mm)
• Overall height: 3.0" (77mm)
• Thickness: 0.437" (11mm)
• Mounting hole cutout (diameter): 2.25" to 2.5" (57mm to 64mm))
• DC voltage: 12/24 VDC
• Fuse size / power input: 15-20 Amp @ 12 VDC, 10 amp @ 24VDC
• Fuse size AUX terminal (must connect): 1 to 2 Amp
• Actuator overall length: 13.58 inches

Rocker Switch

• Controller color: Black
• Actuators per tab plate: 1
• Overall width: 3.125" (79mm)
• Overall height: 3.25" (82.5mm)
• Mounting hole cutout: 2.25" (57mm) X 2" (51mm)
• DC voltage: 12/24 VDC
• Single actuator per tab - fuse size / power input:
  • 20 Amp @ 12 VDC
  • 10 Amp @ 24 VDC

ALC-1 Control Switch

• Controller color: Black
• Number of control stations: 1
• Actuators per tab plate: 1
• Overall width: 3.15" (80mm)
• Overall height: 3.0" (77mm)
• Thickness: 0.437" (11mm)
• Mounting hole cutout (diameter): 2" (50mm)
• DC voltage: 12/24 VDC
• Fuse size / power input: 15 Amp @ 12 VDC, 10 amp @ 24VDC
• Approval: CE (compliance with EMC regulations)

MLC-1 Control Switch

• Controller color: Black
• Number of control stations: 1
• Actuators per tab plate: 1
• Overall width: 3.15" (80mm)
• Overall height: 3.0" (77mm)
• Thickness: 0.437" (11mm)
• Mounting hole cutout (diameter): 2" (50mm)
• DC voltage: 12/24 VDC
• Fuse size / power input: 15-20 Amp @ 12 VDC, 10 amp @ 24VDC

Included:

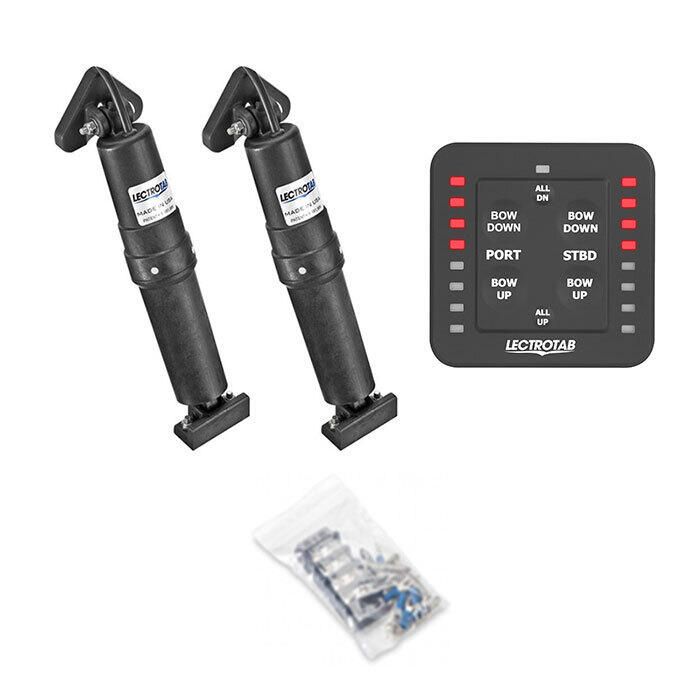

• (2) Actuators with 6' (1.8 m) cable
• (1) SLC-11 Control Switch
• (1) Hardware kit

Installation Instructions (1.27 MB)
