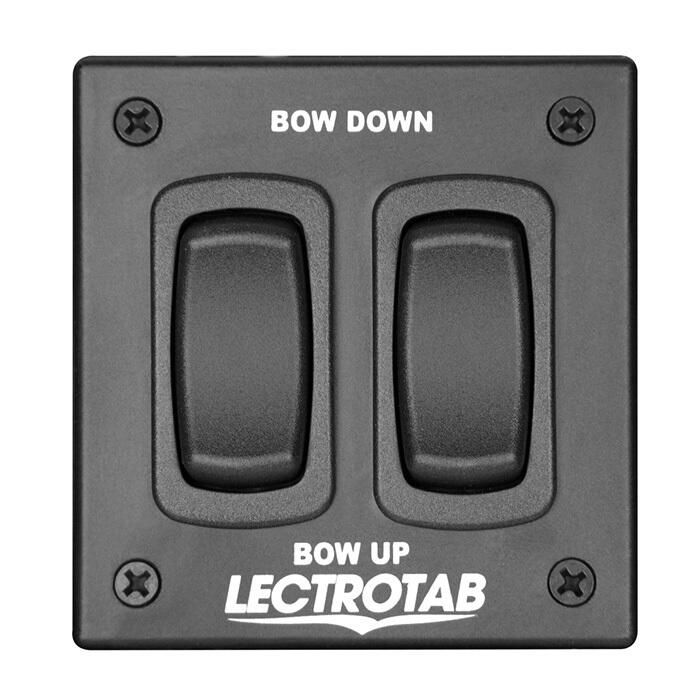

Lectrotab Rocker Switch

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and the rocker is recessed to prevent breaking. It has an "instant stop" circuit when the switches are released, thus preventing actuator over-run. The control switch is self-contained and does not require an additional control box. Switches are available for single or dual station applications.

Features:

• Trim tab rocker switch
• Switches meet military standard 202F for salt spray
• Designed to provide "instant stop" to prevent actuator over-run
• Gasket sealed switch to prevent water entry
• Dual station SAF-NS) applications (require 2 sets of rocker switches)
• Operates up to 2 actuators per tab on 12vdc and 4 actuators per tab on 24vdc systems
• Made in USA

1 Control Station Specifications:

• Actuators per tab plate: 1 or 2 (voltage dependent)
• Overall width: 3.125" (79 mm)
• Overall height: 3.25" (82.5 mm)
• Mounting hole cutout: 2.25" (57 mm) X 2" (51 mm)
• DC voltage: 12/24 VDC
• Single actuator per tab fuse size / power input:
  • 20 Amp @ 12 VDC
  • 10 Amp @ 24VDC
• Dual actuator per tab - fuse size / power input:
  • 20 Amp @ 12 VDC
  • 10 amp @ 24VDC

2 Control Station Specifications:

• Actuators per tab plate: 1 or 2 (voltage dependent)
• Overall width: 3.125" (79 mm)
• Overall height: 3.25" (82.5mm)
• Mounting hole cutout: 2.25" (57 mm) X 2" (51 mm)
• DC voltage: 12/24 VDC
• Single actuator per tab - fuse size / power input:
  • 20 Amp @ 12 VDC
  • 10 Amp @ 24VDC
• Dual actuator per tab - fuse size / power input:
  • 30 Amp @ 12 VDC
  • 20 amp @ 24VDC

Data Sheet
