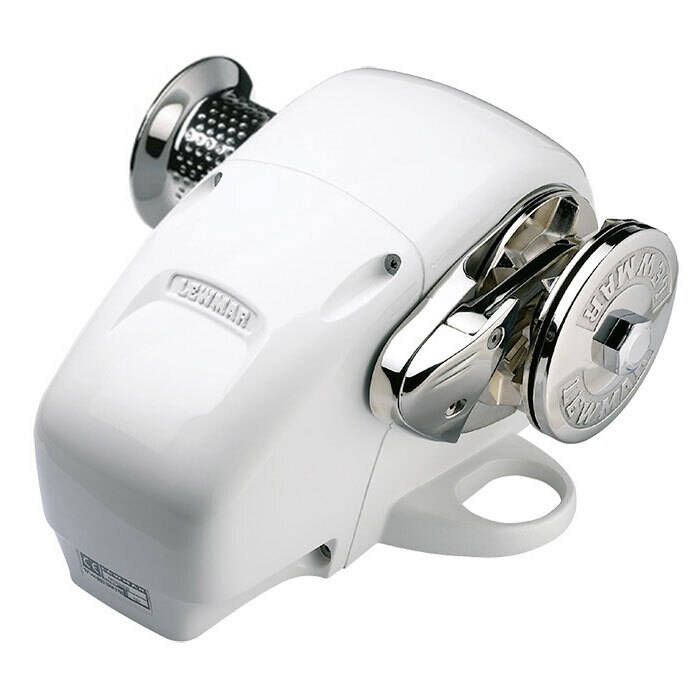

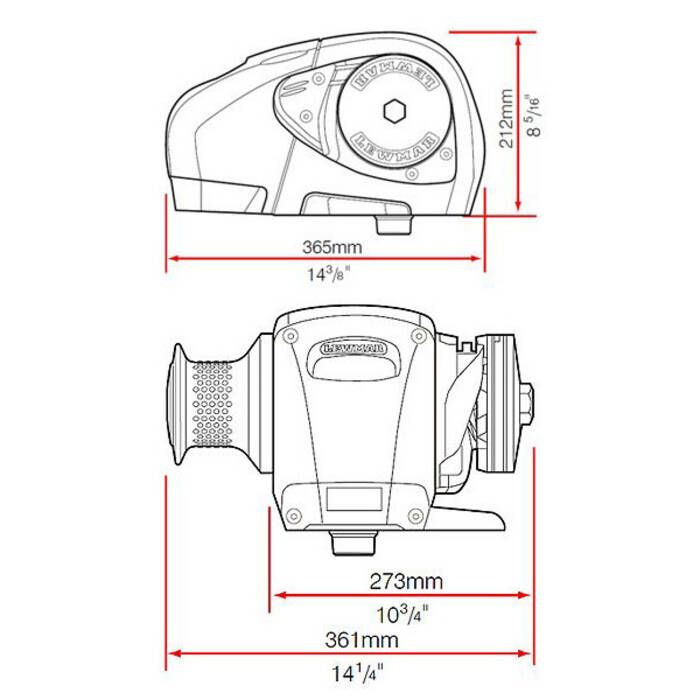

Lewmar H3 Gypsy/Drum Horizontal Windlass Kit - 69600545

The stylish, horizontal H-Series Windlasses use the reliable worm gearbox technology. The integral contactor simplifies wiring and is protected by a durable maincase. The unit's waterproof seal requires minimum maintenance, and since you can install it in one piece, getting started is quick and easy.

Features:

• Quick, easy, one-piece installation
• Robust horizontal worm motor-gearbox for reliable performance
• Integral contactor protected by main case
• Sealed waterproof unit requires minimum maintenance
• Aluminum and composite main case for reduced weight
• Stainless steel warping drum and unique W.A.R.P. (Wear and Abrasion Reduction Pattern) finish
• For boats up to 14 m (48')
• Manual recovery available (sold separately)

Specifications:

• Gypsy Number: 505 (8 mm)
• Motor Supply Voltage: 12V
• Motor Power: 700W
• Max Pull: 1962 lbs (890 kg)
• Max Line Speed: 69'/min
• Working Load Limit: 475 lbs (215 kg)
• Normal Current Draw: 85 A
• Normal Line Speed: 56'/min
• Weight: 56 lbs (25.5 kg)
• Circuit Breaker: 110 A
• Chain Size: 5/16" G4 or BBB
• Rope Size: 9/16" - 5/8" 3-strand or 5/8" 8-plait

Kit Includes:

• Built-in dual-direction contactor
• Circuit Breaker
• Rocker Switch

Note: A 32 mm nut wrench is no longer provided with Lewmar windlass kits.
