Lewmar V3 Vertical Windlass Kit - 6672211110-139

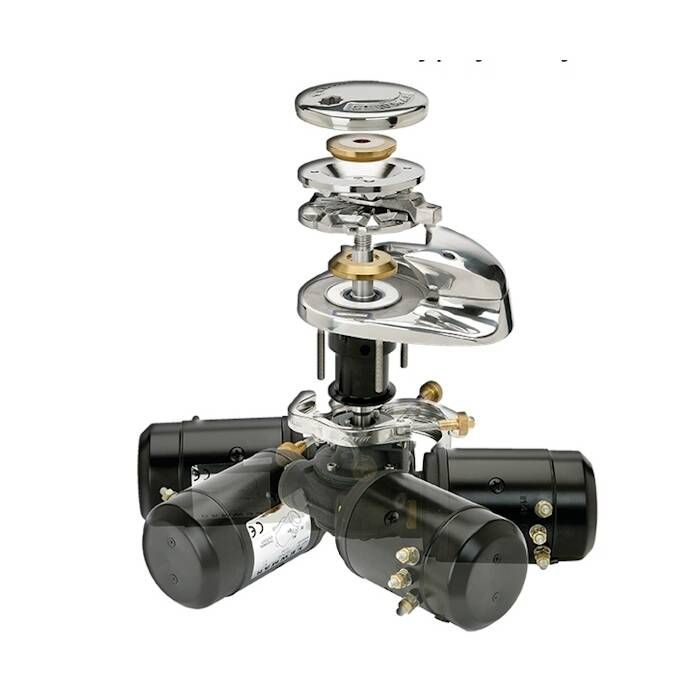

Lewmar introduces the world's first compact stainless steel windlass for power and sail boats. The Lewmar V3 Vertical Windlass Kit has a beautifully styled deck unit that conceals a robust, reliable drive train, worm gearbox and splined shaft for maximum strength and control. With a maximum pull of 2,248 lbs, this unit is intended for boats in the 40 to 50 foot range.

Features:

• 'FastFit'™ makes installation quick and easy and ensures proper drive shaft alignment during installation
• Compact Stainless Steel windlass for power and sailboats
• Deck unit conceals the drive train, worm gearbox and splined shaft
• Rope-chain or all-chain anchor rodes may be deployed at the touch of a button
• Fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come

Specifications:

• Maximum Pull: 1962 lbs (890 kg)
• Chain: 3/8" G4
• Line Size: 5/8" 3-Strand / 3/4" 8-Plait
• Power Supply: 12V DC
• Motor: 1000 W
• Typical Line Speed: 59 ft/min (18 m/min)

In the Box:

• Windlass
• Rocker switch
• Breaker
• Two-direction solenoid
• Handle

Note: Lewmar Gypsy embossed with 003 is optimized for 5/8" 3-strand
