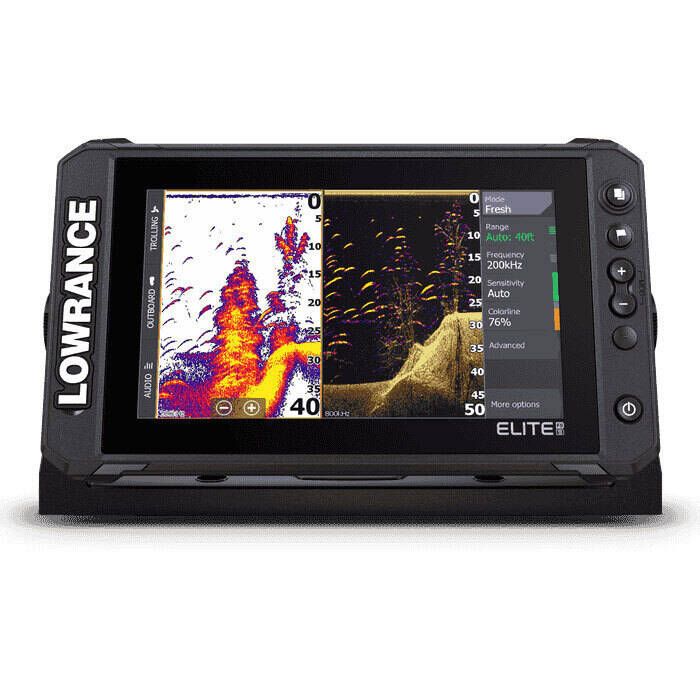

Lowrance Elite FS 9 Multifunction Display with C-MAP Contour+

The Elite FS 9 Multifunction Display combines the power of Lowrance's proven and newest fishfinding tools, with a more affordable display that's easier to use and install. From ActiveTarget live sonar and high-resolution Active Imaging, to preloaded C-MAP® Contour+™ Fishing Maps, the Elite FS gives you all the tools you need to find and catch more fish.

Features:

• Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
• Full networking capability with integrated wireless, NMEA 2000® and ethernet connectivity
• Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
• High Resolution, multi-touch screen
• Preloaded C-MAP Contour+ (US/CAN) with 1-foot contours on 8,900 lakes, plus mapping options including C-MAP, Navionics® and more
• C-MAP® Easy Routing, Navionics® Autorouting capability
• C-MAP Genesis Live onscreen mapping
• Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

Active Imaging™ 3-in-1 Transom Mount Transducer:

• Quickly identify fish-holding structures like rockpiles, standing timber, weed beds, ditches and drop-offs
• More refined detail and better range than any other imaging technology
• Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan
• Easier target identification with FishReveal™ Smart Target View
• Supports Medium and High CHIRP (83/200 kHz) + 455/800 kHz frequencies

Specifications:

• Sonar
  • Power Output: Max 1 kW RMS
  • Sonar Connections: One connector for Active Imaging, SideScan, DownScan and CHIRP
  • Active Imaging 3-in-1: DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455 kHz: Max 300 ft./91 m to each side
  • CHIRP Sonar: High Range (160-240 kHz)/200 kHz: 1000 ft / 305 m
  • CHIRP Sonar: Med Range (60-100 kHz)/83 kHz: 1000 ft / 305 m
  • CHIRP Sonar: Low Range (40-60 kHz)/50 kHz: 3000 ft / 900 m
  • Available Sonar Frequencies: Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging
  • Depth Alarm: Yes
  • Shallow Alarm: Yes
  • Temperature Readings: Yes
• Environmental
  • Operating Temperature Range: -15° C to +55° C (5° F to 131° F)
  • Storage Temperature -20° C to +60° C (4° F to 140° F)
  • Waterproof Rating: IPX6 and IPX7
• Electrical
  • Supply Voltage: 12V DC (10.8 to 17 VDC min - max)
  • Recommended Fuse Rating: 3 A
  • Power Consumption Typical: (2 A at 13.8 VDC)
  • Power Consumption (Maximum): 28 W (2 A at 13.8 VDC)
• Display
  • Resolution: 800 x 480 pixels
  • Viewing Angles: 50° top, 60° bottom, 70° left and right
  • Brightness: >1200 nits
  • Touch screen: Multitouch
• Physical
  • Weight (display only): 1.2 kg (2.7 lbs)
  • Compass Safe Distance: 0.5 m (1.6 ft.)
• Interface/Connectivity
  • NMEA 2000®: 1 port (Micro-C connector)
  • Data Card Reader: 1x slot (microSD, SDXC)
  • Ethernet: 1 Port, (5-pin Ethernet connector, 100Base-T)
  • Sonar: 1 Port (9-pin connector)
  • Wi-Fi Internal: 802.11b/g/n - No wireless networking between units
  • Bluetooth®: 4.0 with support for Bluetooth® Classic
  • GPS: 10Hz High speed update WAAS, MSAS, EGNOS, GLONASS
