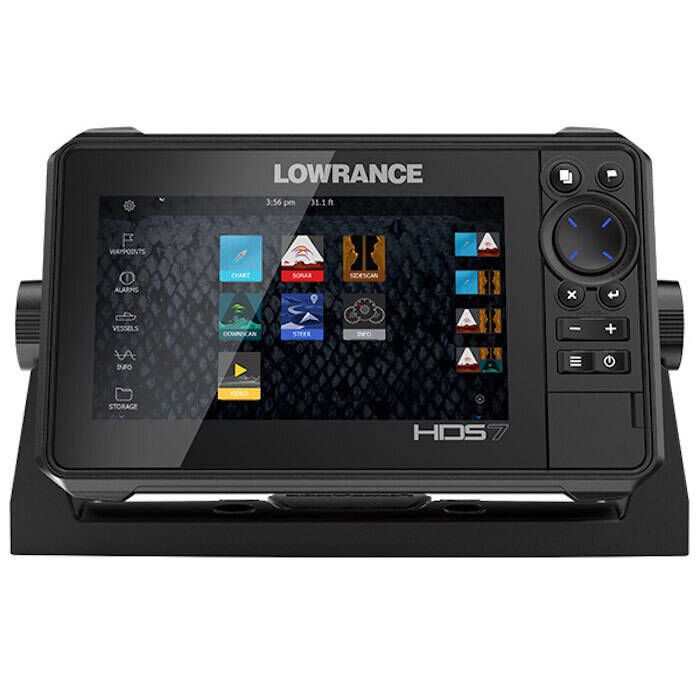

Lowrance HDS-7 LIVE Multifunction Display - 000-14415-001

This package offers the best collection of innovative sonar features available, including, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging™.

Navigating to your favorite fishing spot or finding a new one has never been easier, behind the best suite of navigation features ever built into an HDS display -- including preloaded C-MAP® US Enhanced mapping with 1-foot contours on 4,000 lakes, 11,250 Standard Definition lakes, C-MAP® Easy Routing, Navionics® Autorouting capability and C-MAP Genesis Live mapping. HDS

LIVE 7 also simplifies your time on the water with call notifications you can switch it off for uninterrupted fishing of course.

The high-def SolarMAX™ HD screen provides industry-leading images that are always easy to see from any angle, in direct sunlight or even through polarized sunglasses.

In the Box:

• 7" HDS Live display unit (177.8 mm)
• U-bracket kit -plastic (includes knobs)
• Power / NMEA0183 cable
• SD-card door gasket kit
• Bezel
• Sun cover
• Documentation pack

Features:

• Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
• Active Imaging™ 2-in-1 (Side/Down) sonar ready
• StructureScan® 3D with Active Imaging enhancements
• LiveSight™ Real-Time sonar Compatible
• Smartphone notifications
• High-performance quad-core processor
• C-MAP Genesis Live onscreen mapping
• FishReveal™ Smart Target View
• High-resolution 7-inch SolarMAX™ HD multi-touch screen with the widest range of viewing angles viewable even through polarized sunglasses
• Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
• C-MAP Easy Routing, Navionics® Autorouting capability
• Built-in Dual-Channel CHIRP dual sonar-range coverage from the same transducer
• Live Network Sonar cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
• SiriusXM® Marine Weather and Audio Compatible
• Wireless and Bluetooth® connectivity
• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides one touch access to system controls
• Touchscreen control of MotorGuide® Xi5 Trolling Motor, Power-Pole® Anchors and Lowrance Outboard Pilot
• Radar and SonicHub®2 audio server connectivity
• NMEA 2000® engine support
• Optional mapping upgrades include C-MAP, Navionics® and more
• Lowrance HDS LIVE Advantages:
  • Best Screens:
    • You will have an easier time viewing fish, structure and bottom detail on bright and clear SolarMAX™ HD screens that offers clean and crisp views from any angle, in direct sunlight even through polarized sunglasses
    • Easy and Efficient Interface: On-the-water adjustments will be quicker and easier with the refreshed HDS interface designed with a simpler feature layout to deliver next-level ease of use and efficiency
  • Active Imaging:
    • See structure and cover with a new level of refined detail at a range unmatched by anyone else with new, Lowrance Active Imaging
    • Active Imaging is available with 3-in-1 transducer (CHIRP, SideScan and DownScan Imaging) and Active Imaging 2-in-1 transducer (SideScan and DownScan Imaging) options
  • View all Structure Imaging
    • Side-by-Side: For the first time, you can get a side-by-side view of all your structure imaging technology with the enhanced capabilities of HDS LIVE, which supports simultaneous viewing of StructureScan 3D, SideScan and DownScan Imaging™ panels
  • Most Advanced Fishfinder Technology:
    • Simultaneously view CHIRP Sonar with Active Imaging to get the best possible view of fish and structure, below and to the sides of your boat
  • LiveSight:
    • Get live views of fish movements across the bottom, in and around cover and structure with new, revolutionary LiveSight™ sonar
    • Capable of showing views beneath, or in front of your boat, LiveSight™ is at its best when trolling or fishing from a single spot. HDS LIVE comes LiveSight™ ready, so all you need to do is mount the LiveSight™ transducer and get after the fish
  • C-MAP Genesis LIVE:
    • Create your own high-definition 1/2-foot contour maps, in real time, on your HDS LIVE screen with C-MAP Genesis Live
  • Smartphone Notifications:
    • Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE
    • Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your HDS LIVE display
  • FishReveal™ Smart Target View:
    • Makes fish easier to see on DownScan Imaging™ by combining crystal-clear CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish
  • High Performance Processor:
    • Whether panning the chart, tracking back through your sonar history or creating a Genesis LIVE map, you will get responsive, smooth operation with no lag from the quad-core processor at the heart of HDS LIVE
    • The high- performance processor can easily drive today's technology, like Active Imaging, LiveSight sonar, Genesis Live, StructureMap, Live Network sonar with power to spare for future innovations
  • Modern, Low-Profile Design:
    • Enhance the look of your console with the new, zero-edge glass design of HDS LIVE, featuring the exceptional crispness, vibrant images and extreme viewing angles of SolarMAX™ HD technology
    • Create clean, sleek look at the console with an HDS LIVE flush mount
  • Live Network Sonar:
    • Cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
    • Get sonar views from bow-mounted transducer and the in-hull or transom-mounted transducer at the same time on the same display
  • Dual-Channel CHIRP:
    • Deep water and trolling anglers will never miss a fish, watching two Lowrance CHIRP frequencies at the same time via a dual-channel CHIRP split screen
    • Run a High CHIRP panel for the best target separation close to the bottom or in tight schools, a Medium CHIRP panel to cover the widest area
    • Ideal for watching bait schools under a transducer in shallow water, or go deeper with a Low CHIRP panel to cover more of the water column
  • C-MAP® Easy Routing and Navionics® Dock-to-Dock Auto routing:
    • You will navigate faster and easier with automatic route planning
    • Menu activated, the feature automatically plots the shortest and safest course based on a boat's draft, beam and height, creating a route around a landmass, shoals and other fixed navigational hazards
    • Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts
  • C-MAP Navigation Palette:
    • Enhances the readability of C-MAP charts, especially near shore, where the colors used for land, docks, anchorage areas, water, and channels are nicely differentiated and water contour lines are distinct
    • That makes it easy to tell where the boat is in relation to a channel, nav-aid, ledges and drop-offs, or a point of land
    • The color scheme is much easier on the eye
  • Wireless Connectivity:
    • Integrated wireless connectivity with the Lowrance® LINK App and other onboard devices, allows you to download software updates and custom C-MAP® Genesis maps directly to the display and offers wireless smartphone viewing/tablet control of HDS Carbon displays
  • Network All Components:
    • Plug-and-play compatibility with Lowrance performance modules, including Broadband Radar™, SonicHub®2 Marine Audio, SiriusXM® Marine Weather and audio, Class B AIS and DSC VHF, as well as industry-leading technologies, like Mercury® VesselView® Link, Bluetooth® control of Power-Pole® shallow water anchors equipped with the C-Monster™ Control System and the SmartSteer™ interface, featuring control of MotorGuide® Xi5 trolling motor and the Lowrance® Outboard Pilot
    • Compatible
      • Active Imaging™ 3-in-1
      • StructureScan® 3D with Active Imaging
      • LiveSight™ Real-Time Sonar
      • Point-1 Antenna support (external)
      • Precision-9 Compass compatibility
      • Broadband 4G™ Radar, 000-10419-001
      • Broadband 3G™ Radar, 000-10418-001
      • Lowrance Halo24 Radar, 000-14541-001
      • Outboard Pilot Cable Steer Pack, 000-11749-001
      • Outboard Pilot Hydraulic Pack, 000-11748-001
      • SonicHub2 Marine Audio Server Pack, 000-12301-001
      • WM-3 SiriusXM® Weather and Radio Module, 000-11076-001
      • Connects and communicates with HDS Carbon and HDS Gen3 multifunction displays
      • Dual Ethernet networking port
      • Micro-C connection for NMEA 2000® devices
      • Video input via optional adapter cable
      • NMEA 2000® Starter Kit, 000-0124-69
      • Supported by Lowrance Service & Support program

Some features require additional component purchase.

Specifications:

• Overview
  • Display: 7" / 177.8 mm IPS
  • Screen: High-Resolution SolarMAX™ HD multi-touch display
  • Resolution: 1024 x 600
  • Backlighting: LED
  • Operating Voltage: 12 Volt DC (10-17 Volt DC min-max)
    • Supply Voltage: 12 Volt DC (10-17 Volt DC min-max)
    • Power Consumption: 49.68 Watt (3.6 Amp at 13.8 Volt DC) max
  • Warranty: Two year
• Sonar
  • Depth Alarm: Yes
  • Sonar Frequencies: 455/800 kHz (StructureScan® 3D with Active Imaging, Active Imaging 3-in-1), 40-60kHz, 85-145kHz, 130-210kHz (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band) Max Side-Scanning Range: 600 feet per side
  • Shallow Alarm: Yes
  • Temperature Readings: Yes
  • Transducer Type: Multiple selections Lowrance® and Airmar®
• Max Depth Per Sonar Operation:
  • StructureScan 3D: SideScan 600 ft/183m; DownScan 300 ft/92m
  • Active Imaging HD: 300 ft / 91 m @ 455/800 KHz
  • CHIRP: 3,500 ft / 1067 m (transducer dependent)
• Technical/Environmental
  • Waterproof Standard/Rating: IPx7
  • Dimensions
  • Product Width: 9.21 in \ 234 mm
  • Product Depth: 3.05 in \ 77.7 mm
  • Product Height: 5.73 in \ 145.6 mm
• GPS Navigation
  • Navigation: Routes: 100
  • Navigation: Waypoint Storage: 3,000
  • GPS Antenna Type: Internal 10Hz ultra-high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)
  • Plot Trails: 100 trails
  • GPS Alarms: Yes
• Mapping:
  • Preloaded C-MAP US Enhanced charts with Inland and coastal coverage, plus worldwide reference background map Mapping
    • Options: C-MAP Insight Pro, C-MAP Lake Insight HD, C-MAP MAX-N+, Navionics®+, Navionics Platinum+, Gold and HotMaps® Premium, Fishing Hotspots® PRO and more
• Networking Connectors
  • NMEA Port: NMEA 0183 + NMEA 2000®
  • Power and Video: Red 10-pin power connector
  • 2 Ethernet Ports
  • Channel 1 Transducer port:
    • Blue 9-pin connector for Broadband/CHIRP sonar, StructureScan 3D with Active Imaging, SideScan and DownScan Imaging™, LiveSight Forward and Down
  • Channel 2 Transducer Port:
    • Black 9-pin connector for Broadband/CHIRP sonar, Active Imaging 3-in-1 / 2-in-1, TotalScan, StructureScan HD with SideScan and DownScan Imaging™
