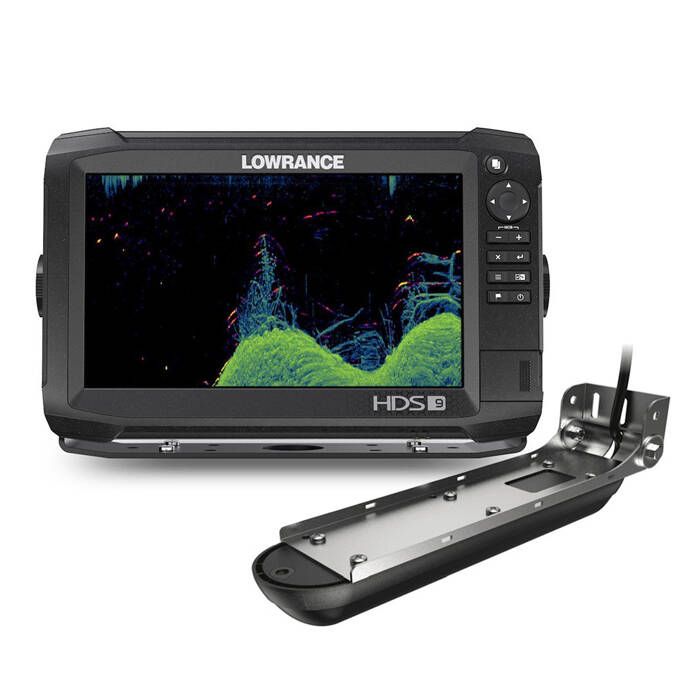

Lowrance HDS Carbon 9 MFD Display with Active Imaging 3-in-1 Transducer

Lowrance's HDS Carbon 9 Multifunction Display with Active Imaging 3-in-1 Transducer provides the most effective and easy to use tools needed to find more fish, including the brightest and clearest SolarMAX™ HD screen, the fastest chart redraws and sonar updates, plus built-in Lowrance CHIRP sonar with SideScan and DownScan capabilities.

Features:

• Dual core, high performance processor provides faster map panning, more responsive commands, quicker redraw, and more frequent sonar updates
• SolarMAX™ HD display gives optimum performance with easy viewing from any angle, even in direct sunlight, and through polarized sunglasses
• Easily pinpoint fish locations and key fishing areas in and around structures
• Watch two Lowrance CHIRP frequencies at the same time on a dual-channel CHIRP split screen
• Place waypoints on favorite fishing areas and revisit them again and again
• Active Imaging 3-in-1 is perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs
  • Delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology
  • SideScan provides picture-like views on each side of your boat
  • FishReveal™ Smart Target View combines traditional CHIRP sonar fish arches with superior, high-resolution DownScan Imaging for precision, like bottom detail, structure and bait fish
• Cover more water by viewing sonar from up to two transducers at the same time, on the same display - with Lowrance exclusive Live Network Sonar
• Plug and play compatibility with Broadband radars, SonicHub®2 Marine Audio, SiriusXM® Marine Weather and audio, DSC VHF, as well as industry-leading technologies, like Mercury® VesselView® Link, Bluetooth® control of Power-Pole shallow water anchors and the SmartSteer™ interface, featuring control of MotorGuide® Xi5 trolling motor and the Lowrance® Outboard Pilot
• Download software updates and C-MAP Genesis maps directly to your display with integrated wireless connectivity
• Controllable from your smartphone or tablet using the free Link App
  • Backup and restore waypoints, routes, trails and display settings directly to your mobile device
• Preloaded, high detail C-Map Discover Chart with full-featured vector charts, custom depth shading, tides & currents, and the very best of C-MAP High Resolution Bathymetry

Display

• Size: 9 Inches
• Display resolution: 1280 x 720, LCD w/ LED backlight
• Screen brightness: >1300 nits
• Backlight color: Pure white LED
• Viewing angles: 85° top/bottom, 85° left/right

Electrical

• Recommended fuse rating: 5A
• Power consumption typical: 1.75A @ 13 VDC with full backlight, sonar on
• Power consumption max: 2.3A @ 13 VDC with full backlight, sonar on
• Power consumption min: 1.75A @ 13 VDC with full backlight, sonar on
• Supply voltage: 12 VDC (10.8-17 VDC)

Connectivity

• Ethernet ports: 2 x 100 Mbit, 6 max MFD's on a network
• Radar compatibility: 4G (Broadband), 3G (Broadband), TX06L-1 (6kW HD Digital)
• Sonar compatibility:
  • Integrated: CHIRP, Broadband, DownScan & StructureScan
  • Compatible with: SonarHub, StructureScan, StructureScan3D
• NMEA 2000 connectivity: 1x Micro-C
• Video: Output but no input: Composite video RCA - single channel via optional adaptor
• Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
• Bluetooth: Integrated
• PC connectivity: No
• GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
• GPS receiver channels: 16 Channels
• Compass safe: 12" (300 mm)
• Time to first fix: 30s
• Correction: DGPS, WAAS
• GPS position accuracy: 20m RMS
• Update rate: 10 Hz
• Shock vibration: 100,000 cycles of 20 G
• AIS: AIS chart and radar overlay, target vessel details
• SD Card storage: 2 MicroSD slots, max. 32GB each

Environmental

• Operating temperature range: -15° C to +55° C (5° F to 131° F)
• Storage temperature range: -40° C to +85° C (-40° F to 185° F)
• Waterproof rating: IPX7 with card door closed
• Approvals compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Physical

• Mounting methods: Gimbal bracket or dash flush mount
• Dimensions (W x H x D): 168.92 x 264.95 x 88.2 mm (6.65 x 10.43 x 3.47")
• Weight: 2.00 kg (4.14 lbs)

Software

• Interface: Full multi-touch touchscreen and keypad; 8-way directional keypad; ZOOM +/-, EXIT, ENTER, MENU, SWAP PANEL, WPT, LIGHT/POWER
• Cartography included: C-Map Discover Charts
• Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
• Steering modes: Course, Heading, Waypoint, Power Steer
• Weather: SiriusXM via WM-3 (USA only)
• Digital switching: C-Zone
• Autopilot: Outboard Pilot and MotorGuide Xi5 Trolling Motor - require Motorguide PinPoint Gateway
• Maneuvers turn patterns: Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
• Waypoints, routes, tracks: 3000 waypoints, 100 routes and 100 trails with up to 10,000 points per trail
• Multimedia: SonicHub, SonicHub2, FusionLink products
• Internal storage: 8.0 GB

Active Imaging 3-in-1 Transducer

• Cable length: 7.6 meters (25 feet)
• Mounting options: Transom, flush step, and jack plate mounting
• Connector: 9 pin
• Output: Traditional, SideScan imaging, DownScan imaging and temperature
• Frequency:
  • Traditional: 200 kHz
  • High Chirp: 83 kHz
  • Medium Chirp / SideScan: 455 kHz, 800 kHz
• Max depth:
  • Traditional: 305 m (1000 ft.) at 200 kHz
  • High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft.)
  • SideScan: 91 m (300 ft.) side range at 455 kHz, 46 m (150 ft.) side range at 800 kHz
• Operating speed:
  • Traditional: 48 knots (55 mph)
  • DownScan and SideScan: 9 knots (10 mph)

Package Includes:

• HDS-9 Carbon Multifunction Display
  • Power cable
  • Set of 3 x 3-amp fuses
  • Gimbal bracket and knobs
  • Suncover
• Lowrance Active Imaging 3-IN-1 Transom Mount Transducer
• C-Map Discover Charts
