Maretron Micro Multi Port Box - CM-CF-4

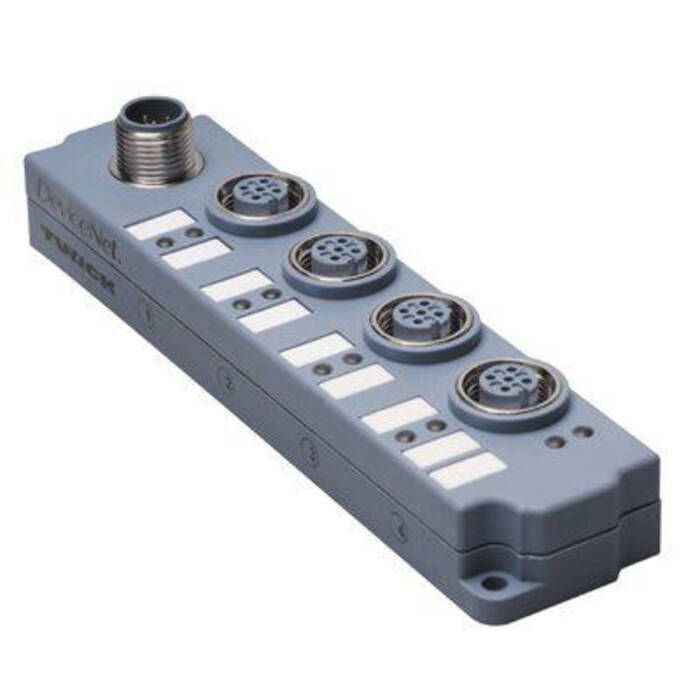

Maretron's CM-CF-4 multiport box allows several micro drop cables to be consolidated and connected back to the trunk, which eliminates the need to have numerous tees connected near a single point. The multiport box connects to the trunk through a double-ended cordset and Tee (must be bought separately). Ideal for locations with multiple NMEA 2000 devices such as behind dashboards.

Features:

• Ideal for consolidating many connections
• Requires the purchase of an additional double-ended cordset for connection back to the trunk

Micro / Mid Cable Specifications

• Micro: 2 x 22AWG power conductors, 18.1 ohms/1000ft, red/black
• Micro: 2 x 22AWG data conductors, white/blue
• Micro: 1 x 22AWG drain wire
• Micro: PVC gray cover
• Mid: 2 x 16AWG power conductors, 4.1 ohms/1000ft, red/black
• Mid: 2 x 20AWG data conductors, white/blue
• Mid: 1 x 20AWG drain wire
• Mid: PVC gray or blue outer cover to color-code wiring
• Micro/Mid connectors rated at 4A max
• For 12V systems only
