Maretron Micro Termination Resistor - IT-CM-CF

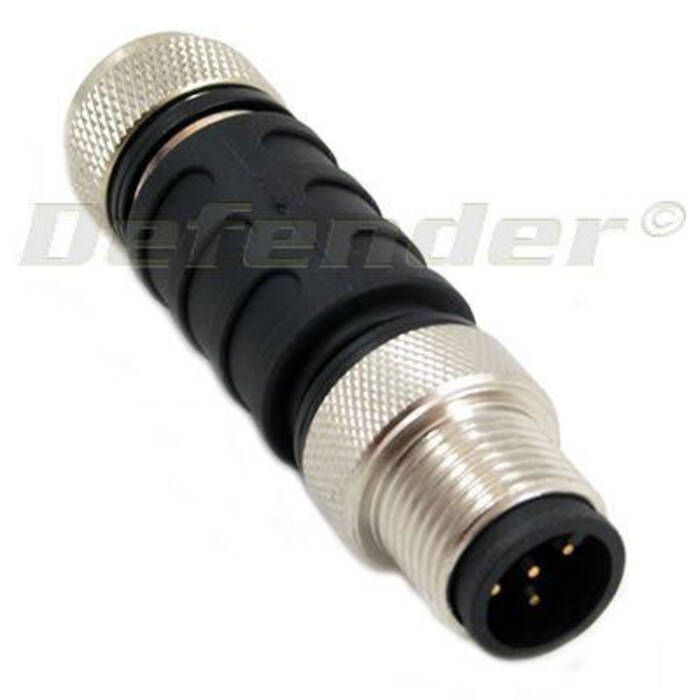

The Inline Maretron Micro Termination Resistor (IT-CM-CF) is used where the network is terminated at a product, for example a GPS or weather station at the top of a mast.

Features:

• Two termination resistors are required on every NMEA 2000 network
• They are placed at each end of a network trunk cable
• Like the double ended cord-sets, the termination resistors are waterproof and continue to function even while submerged in the bilge
• Sold each

Specifications:

• Plug Gender: Male / Female
• Rated Voltage:10-30V DC
• Material:
  • Contact Mat / Plating: Brass / Gold
  • Coupling Nut Mat / Plating: Brass / Nickel
• Internal Resistor: 121 Ohms (1/4W)
• NMEA: NMEA 2000 approved

Product Data Sheet
