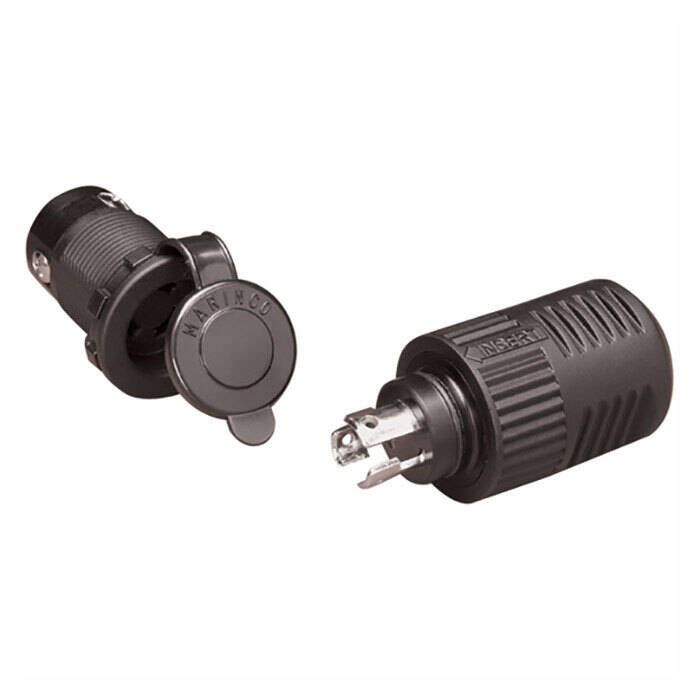

Marinco ConnectPro Watertight Trolling Motor Locking Outlet and Plug Assembly - 12VCP

The ConnectPro trolling motor plug and receptacle system is a revolutionary concept in trolling motor DC connections. The superior electric current carrying capacity of the ConnectPro system eliminates problems that rob motors of power and reduce battery life. The ConnectPro system also features a locking plug and receptacle with a spring clamping connection that provides a secure electrical contact.

Receptacle Features:

• Universal design for 2 or 3-wire configuration
• Works with 12, 24, 12/24, 24/36 or 36V systems
• Watertight sealing cap
• Corrosion resistant, plated brass electrical components
• Drain holes in receptacle keep water away from electrical components
• Perma-Lock™ screw terminals will not loosen under extreme hull vibration
• Standard 1-1/8" diameter mounting hole
• Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation
• Accepts 10 and 8 gauge wire
• Easily replaces other trolling motor plugs and receptacles

Plug Features:

• O-ring seal for waterproof connections
• Weather resistant plug cover
• Corrosion resistant, plated brass electrical components
• Accepts 16 to 8 gauge wire
• Ergonomic contoured grip for easy hook-up and ground blade alignment

Specifications:

• Max. Amperage: 40 Amps
• Voltage: 12V, 24V, 12/24V, 36V, 24/36V systems
• Wire: Two or three wire
• Terminals: Set screws with ferrule
• ConnectPro Plug and Receptacle: 16 AWG to 8 AWG
• Wire Adaptor: 6 AWG
• Body material: Nylon
• Contacts: Nickel plated brass
• Body Screws: Stainless steel with black oxide coating
• Terminal Screws: Nickel plated steel
• Weather resistant O-rings and gasket
