Marinco Pro Installer Dual Bank Control Battery Switch - 772-DBC

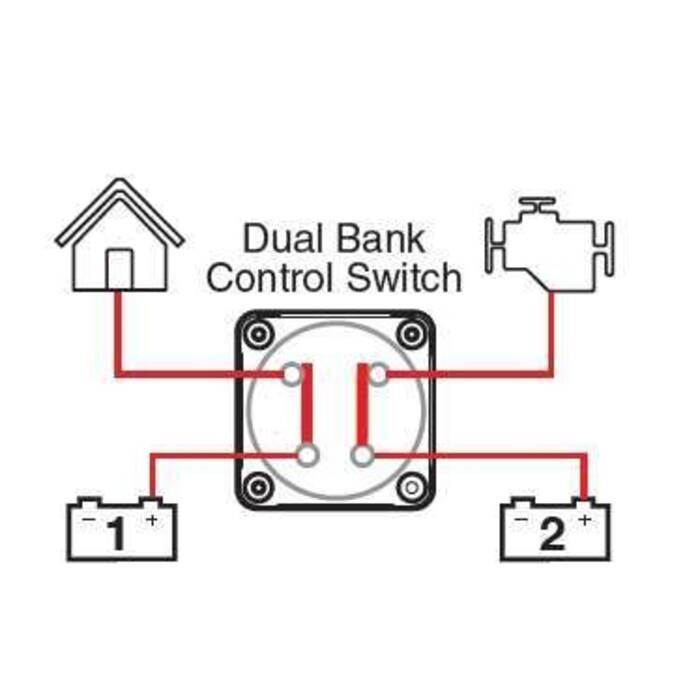

Marinco® Pro Installer Dual Bank Control Battery Switch combines the functionality of (3) battery switches (House, Start and Emergency Parallel) by simultaneously controlling two battery banks and two loads.

Features:

• Unique isolated-On position allows use of house loads and VHF radio if the engine needs to be electrically isolated
• Dual Bank Control allows the use of optimized battery banks (engine, house) for their respective loads an appropriately sized deep cycle bank for House loads and thin-plate starting batteries for the engine
• Sensitive electronics are isolated from starter motor-induced voltage spikes because House and Engine loads are separated during normal operation
• Panel mounting allows direct access to switch studs from rear of panel
• Includes back cover and (3) removable side panels for security and cable protection
• Industry standard 3.85" x 3.85" footprint
• Compatible with metric and imperial mounting fasteners
• Ergonomic removable switch knob allows isolation during servicing
• Engineered to withstand harsh marine environments
• 5-Year limited warranty

Specifications:

• Switch type: Dual Bank Control
• Cranking rating (10 sec.): 1500 Amps per circuit
• Intermittent rating (5 min.): 600 Amps per circuit
• Continuous rating: 400 Amps perc circuit
• Maximum operating voltage: 48V DC
• Regulatory:
  • CE marked, tested to UL1107 ignition protection
  • Ingress Protection IP66 - dustproof / protected against heavy seas and jets of water from all directions
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches

Dual Bank Control Battery Switch Product Information
