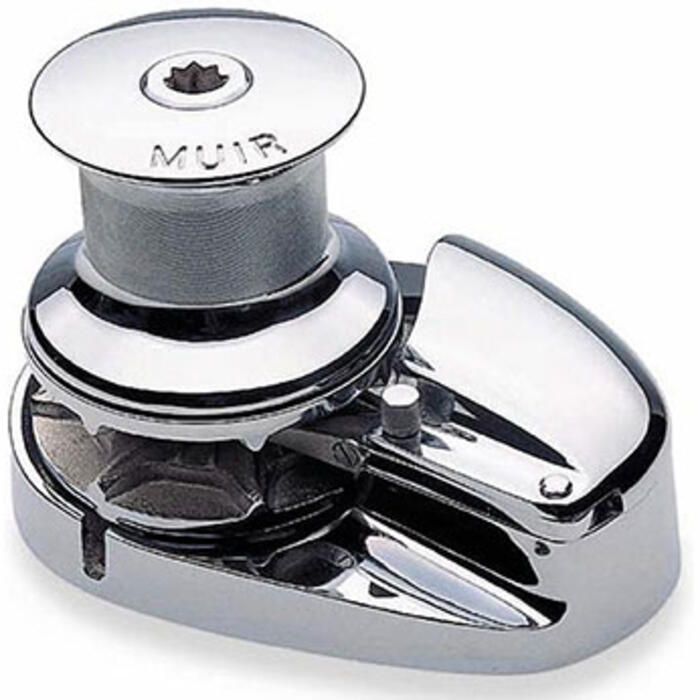

Muir Storm VRC 3500 Vertical Windlass with Capstan

Features:

• The Muir Storm 3500 Low Profile Electric Windlass with Capstan is a Stainless Steel, Vertical Powered Rope/Chain Windlass with a Self-Aligning QuickFit Gearbox Coupler
• Allows the gearbox and motor to be installed directly onto the shaft in any radial position and alleviates installation problems due to uneven deck thickness
• This is helpful when installing a windlass onto a deck with any camber to the deck surface
• QuickFit connection simplifies installation

Specifications:

• Version: Low Profile with Capstan
• Vessel Length: 48' - 77' (15 - 24 m)
• Amps at Workload:
  • 12V: 120A
  • 24V: 75A
• MotorWage: 1500W
• Max Load: 3500 lbs (1590 kg)
• Work Load: 875 lbs (397 kg)
• Max Line Speed: 44'/min (13.5 m/min)
• Material: 316 Stainless Steel
• Finish: 316 Stainless Steel
• 3 Year Warranty

Included:

• Muir Storm 3500 Low Profile Windlass with Capstan
• (2) Footswitches (Up and Down)
• Rope / Chain Management System
• Clutch Handle

Product Brochure

Owner's Manual

Muir Chainwheel Chart
