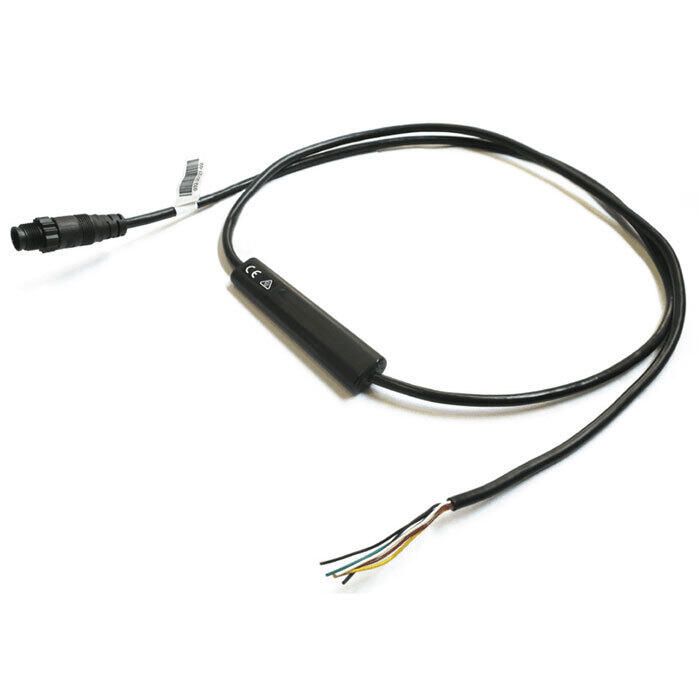

Navico NMEA 0183 to NMEA 2000 Converter Cable - 000-15939-001

Navico's NMEA 0183 to NMEA 2000 Converter Cable is ideal for retrofitting NMEA2000 devices on existing NMEA0183 networks. This interface allows sailors a simple way to upgrade to newer technology, sensors and devices without replacing a whole system. For existing NMEA networks and systems this also allows users to add NMEA0183 devices to your network and instrument system allowing you to choose the products best suited to your boat and sailing.

Features:

• Provides a bi-directional gateway between a NMEA2000 network or devices and a NMEA0183 network or devices
• Easy to install with plug 'n play installation
• Supports NMEA0183 Version 4.1
• Filter NMEA0183 rx/tx sentences and configurable transmit frequency
• Compatible with Lowrance, Simard and B&G MFD's and instrument displays
• NMEA2000 compliant
• Micro-C connectivity

Environmental

• Operating temperature: 5° F to 131° F (-15° C to +55° C)
• Waterproof rating: IP67

Electrical

• Power supply voltage: 12 VDC
• Operating voltage: 9-18 VDC
• Power consumption: 2 LEN, 0.66(55 mA at 12 V)
• Reverse polarity protection: Yes
• Baud rate: 4800 (default), 9600, 19200, 38400, 57600, 115200

Physical

• Length: 6 ft (1.8 m)
• Weight: 0.2lbs (0.1 kg)
