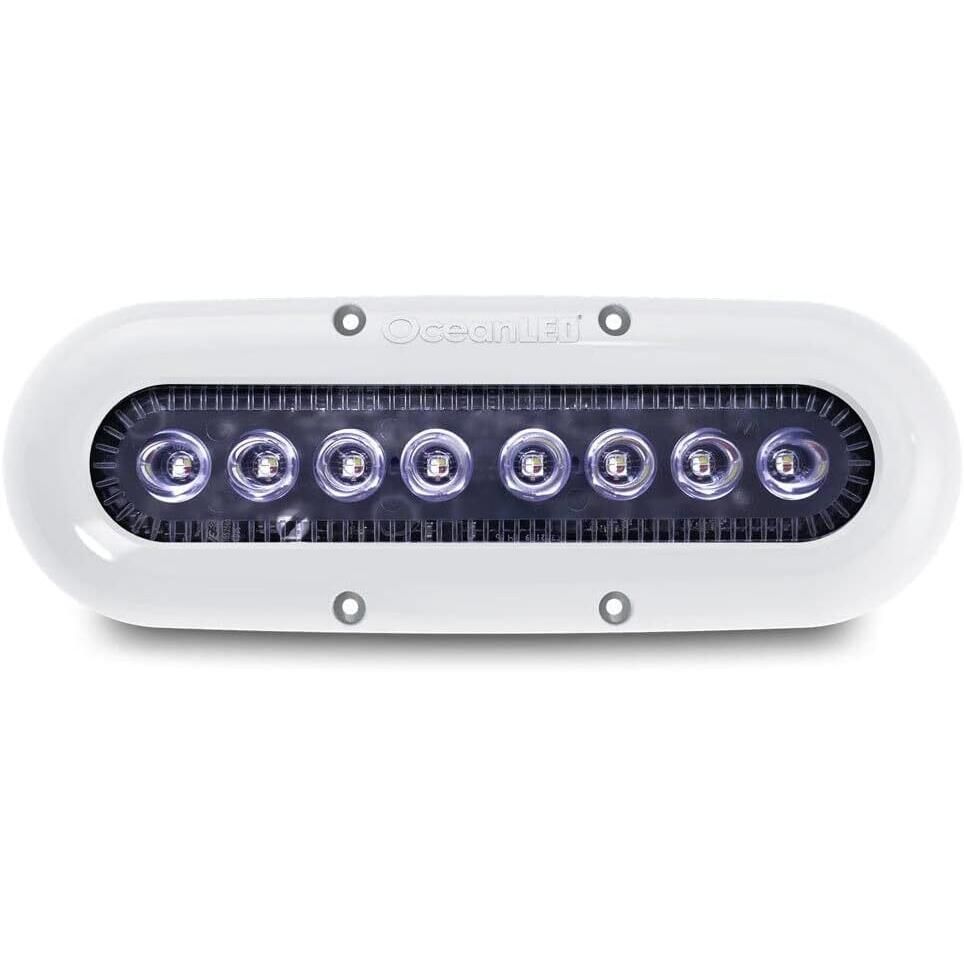

OceanLED X-Series X8 Underwater LED Light

The X8 packs a mighty 2,300 Fixture Lumens into its low profile design and utilizes focused optics to produce a 60 deg. circular beam from each LED providing great water penetration, illuminating a large area.

Features:

• 2,900 Lumens/2,300 Fixture Lumens: Outstanding performance from this small, bright light makes it the obvious choice for those who want tostand out from the crowd
• 60 deg. Beam Angle: A wide-angled, focused beam lights up a large area of the water
• Compact and simple design: Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. Installation needs only a small, 12.5 mm hole in the hull to feed the cable through and 3 screws in place. No bonding required
• Easy to Clean: Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours ofscrubbing each time you use it
• Fish-Strobe Mode: Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait

Specifications:

• Boat size: up to 50' (15 m)
• Transom/Hull spacing: 2-4' (0.5-1.2 m)
• Transom quantity: 2-6
• Hull quantity: 4-8" (10-20 cm)
• Maximum hull thickness: N/A
• Installation depth (to top of fixture): 300 mm below water line
• In water fitting: No
• Light output equivalent to: 50W Xenon
• Fixture Lumens (total light output from a finished fixture): 2,300
• Lumens: 2,900
• Beam angle: 60 deg. circular
• Typical LED life expectancy: 40,000 hours
• Minimum-Maximum operating voltage DC: 9 - 32V DC
• Minimum-Maximum operating voltage AC (AC/optional) Current/Amp draw (DC): 1.65A @ 12V DC - 0.75A @ 24V DC
• Approx. light penetration (avg. water quality): 26' (8 m)
• Approx. Light penetration (perfect water quality): 72' (21+ m)
• Driver type: Internal
• Correlated Color Temp: 6500 K - 450 nm
• IP Rating: IP68
• Fish strobe: YES
• Anti fouling properties: Tritonium coated lens
• LED Manufacturer: CREE
