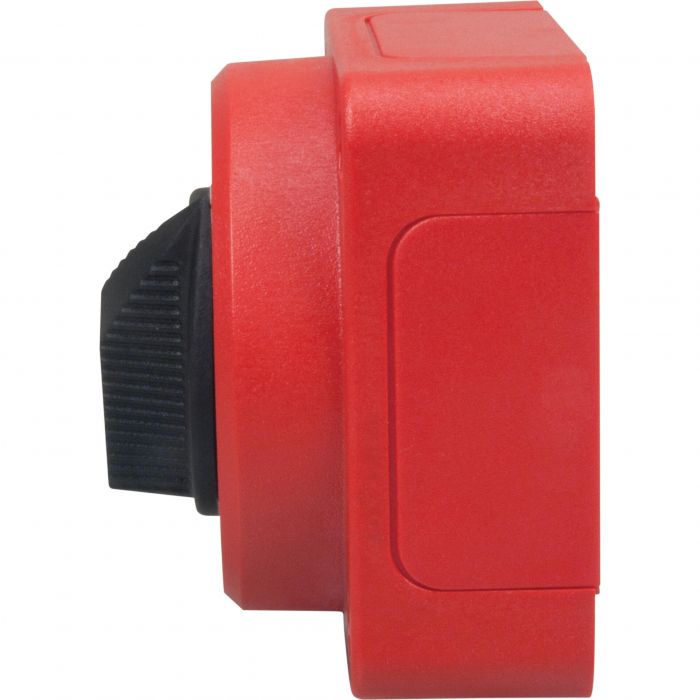

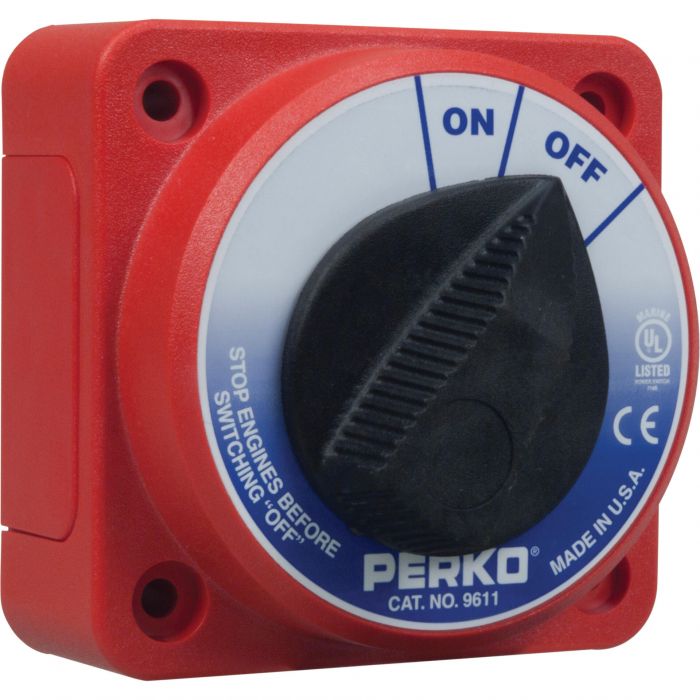

Perko Compact Medium Duty Main Battery Disconnect Switch - 9611DP

Perko 9611 Series battery On-Off switches use the same traditional Perko footprint as the 9601 Series. This makes for easy installation. These switches can be mounted in numerous locations. And as ignition protected switches, they can be installed in the engine rooms of gasoline powered boats.

Features:

• Higher rating capacity than the 8500 series
• Requires 1/3rd less space to mount
• Same bolt pattern as popular 8500 series
• Smooth, positive 90 deg. rotary position selector
• Four removable skirt panels for easy cable access and mounting

Specifications:

• Polycarbonate Body with Brass Terminals
• Ignition Protected
• For use with 6 to 32V Marine Electrical Systems
• Capacity - 315A Continuous, 450A 5 Mins. Intermittent
• Terminal Stud Size: 3/8"
• Width: 4"
• Height: 4"
• Depth: 3"
