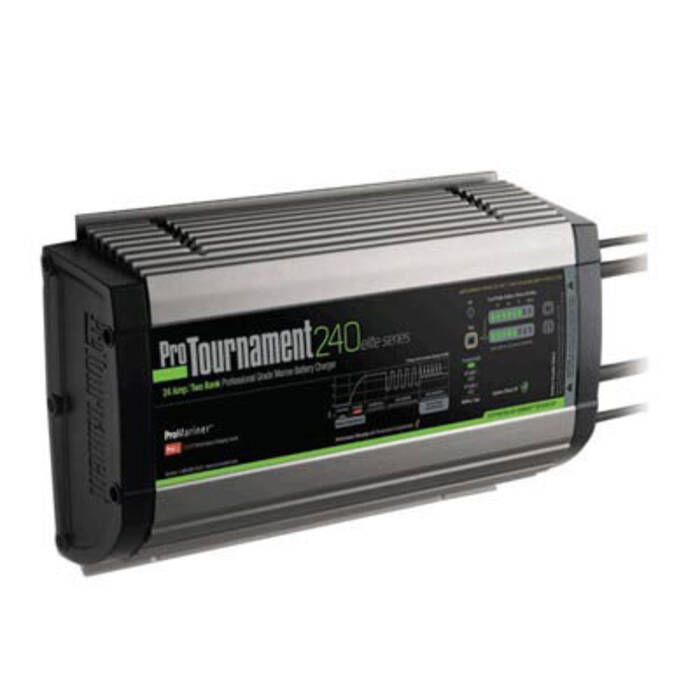

ProMariner ProTournament 240elite Dual Battery Charger - 24A

ProMariner 24 Amp ProTournament 240elite Dual Battery Chargers are the fastest battery chargers with the most features in their class. Specifically designed to deliver maximum charging performance and extend battery life, give your batteries what they demand with ProTournament elite's three (3) digitally selectable "performance matched" 5-stage charge profiles.

Features:

• Professional performance for fastest charge times
• Designed to deliver maximum charging performance and extend battery life
• Tournament winning technology
• 100% charge upon completion of multi-stage charging process
• 100% charging output with AC power as low as 90 VAC
• 50% lighter and 2 to 3 times faster than traditional chargers
• Digital LED display with dual mode battery status monitor
• Intuitive LED display with charge mode indicators and real time charge level status with an on-the-water push-to-test feature for percent of battery power remaining
• Selectable performance matched charge profiles
• Profiles include: Standard Flooded/AGM batteries, HP AGM1 for pure lead AGM batteries like OPTIMA Blue Top Marine Batteries, HP AGM 2 for pure lead AGM Batteries like Odyssey Marine Batteries
• Waterproof connector port for optional status remote
• Optional tri-color LED charge mode status remote can be placed up to 12' away from the charger (Not Included)
• Digital 5-stage charging with temperature compensation
• Analyzes connections and the ability for a battery to accept a charge
• Advance high fill rate charging, conditioning
• Auto maintain (energy saving mode)
• Automatic once a month storage recondition mode
• Automatically monitors ambient temperatures and adjusts its charging output
• System OK & Individual Battery Trouble status indicators
• Advanced technology eliminates time consuming trouble shooting by clearly indicating system and battery connections are OK or if a fault is present on a specific battery bank
• Built-in safety & pre-wired for easy installation
• Shock resistant, space saving extruded aluminum design, 100% waterproof and saltwater tested
• Dual in-line DC safety fuses for trolling motor and house batteries
• Over-voltage, overload, over-temperature, reverse polarity and ignition protection
• Distributed On Demand™ technology
• Will always distribute its full charging output to the combination of batteries connected to it as required by the discharge state of each battery
• 3-year Warranty

2 Bank Specifications:

• Model No. 52024
• Battery Banks: 2
• Battery Types: Group 24 to 31 12V
• Flooded (Lead Acid)
• STD AGM
• High performance AGM
• Charge Rate: 100 Amps / 10 hrs
• DC Output Amperage: 24 Amps
• DC Output Voltage: 12 / 24Volt DC
• AC Input Voltage: 90-135V AC
• Input Frequency: 60 Hz
• Dimensions: 13" L x 7-1/8" W x 2-3/4" H
• Weight: 7 lbs
• Maximum Amperage per Bank: Determined by Distributed-on-Demand™ technology
• Stages:
• Analyze
• Charge
• Condition
• Auto Maintain
• Auto Recondition (monthly)

3 Bank Specifications:

• Model No. 52026
• Battery Banks: 3
• Battery Types: Group 24 to 31 12V
• Flooded (Lead Acid)
• STD AGM
• High performance AGM
• Charge Rate: 100 Amps / 10 hrs
• DC Output Amperage: 24 Amps
• DC Output Voltage: 12 / 24 / 36V DC
• AC Input Voltage: 90-135V AC
• Input Frequency: 60 Hz
• Dimensions: 13" L x 7-1/8" W x 2-3/4" H
• Weight: 8 lbs
• Maximum Amperage per Bank: Determined by Distributed-on-Demand™ technology
• Stages:
• Analyze
• Charge
• Condition
• Auto Maintain
• Auto Recondition (monthly)

Installation Instructions (2.01 MB)
