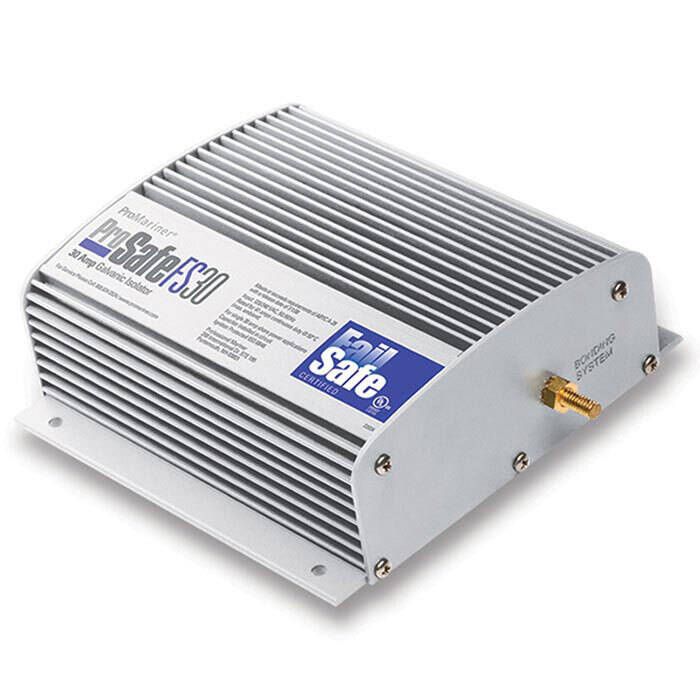

ProMariner ProSafe Fail Safe Galvanic Isolator

ProMariner's 30 Amp ProSafe Fail Safe Galvanic Isolator is built on robust FlatPack semiconductor platforms that ensure in the event of a failure, the failure is safe by not compromising the ground continuity on-board when connected to AC Shore Power.

Features:

• Robust high power diodes allow the FS Series to meet the new FailSafe criteria for conducting inrush currents of 3,000 amps for the required duration period
• Ignition protected - meets ISO 8846 and can be mounted within an engine compartment
• Gold plated terminations
• ABYC A-28 July '08 Compliant and Fail Safe Certified: Certified by Underwriters Laboratories (UL)
• Insures shore power safety ground wire is maintained through the isolator

30 Amp Specifications:

• Shore cord inlet compatibility: Single 15, 16, 20 or 30
• VAC: 120 / 240V AC
• Max Amps: 41
• Hz: 50 or 60 HZ
• Max temperature: 50° C
• Dimensions (LxWxH): 6.75" x 7" x 2.5"
• Weight: 3 lbs

60 Amp Specifications:

• Shore cord inlet compatibility: Single 50 or Dual 15's, 16's, 20's or 30's
• VAC: 120 / 240V AC
• Max amps: 82
• Hz: 50 or 60 HZ
• Max temperature: 50° C
• Dimensions (LxWxH): 7.25" x 6.5" x 3.75"
• Weight: 3.7 lbs

ProMariner ProSafe Fail Safe Galvanic Isolator Owner's Manual and Installation Guide
