Robline Dinghy Control Line

Features:

• Combining high strength, low stretch and light weight, Dinghy Control line is ideal for uses such as main and jib halyards and downhaul/outhaul control lines

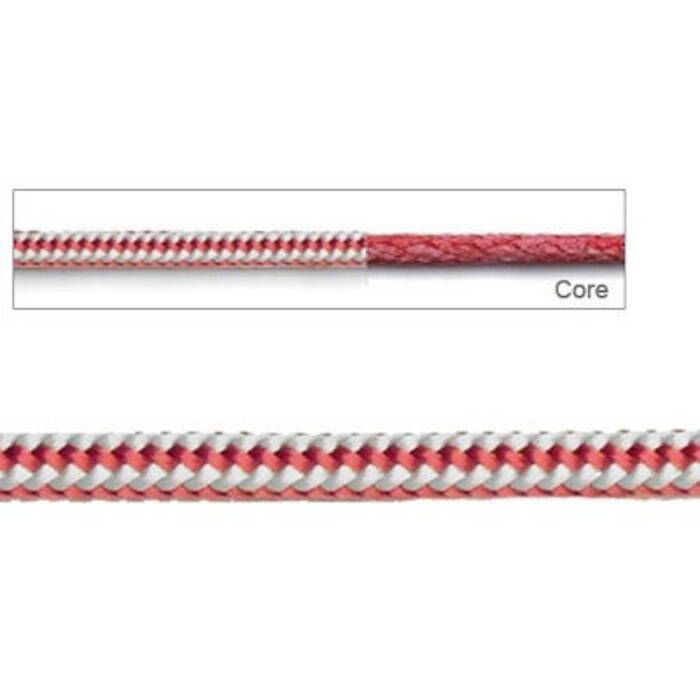

• The braided polyester cover gives comfortable handling and the braided Dyneema SK-78 core provides strength
• Each fiber in the core is impregnated with Robline's unique S.Y.I.S. treatment for improved core-to-cover grip
• In addition, the cover can be stripped to save weight and decrease the diameter
• Stretch: 0.76% at 20% of breaking strength

Specifications:

• Cover Material: 32-plait polyester braid
• Core Material: 16-plait Dyneema SK-78 with S.Y.I.S. impregnated yarns
• 1.7 mm (1/16") Diameter:
  • Average Tensile Strength: 377 lbs
  • Weight per 100': 0.13 lbs
• 3 mm (1/8") Diameter:
  • Average Tensile Strength: 1010 lbs
  • Weight per 100': 0.47 lbs
• 4 mm (5/32") Diameter:
  • Average Tensile Strength: 1570 lbs
  • Weight per 100': 0.74 lbs
• 5 mm (3/16") Diameter:
  • Average Tensile Strength: 2700 lbs
  • Weight per 100': 1.08 lbs
• 6 mm (1/4") Diameter:
  • Average Tensile Strength: 3710 lbs
  • Weight per 100': 1.55 lbs

Information on Tensile Strength VS Working Load
