Roca W5-Series Windshield Wiper Motor with Arm and Blade - RC521011

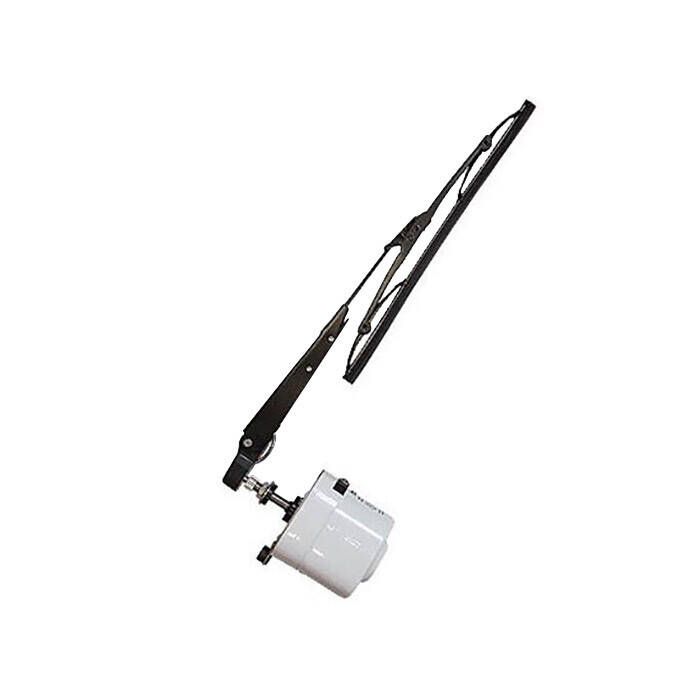

Roca W5 Series Windshield Wiper Motor with Arm and Blade

Features:

• Single-speed wiper motor supplied with wiper arm adjustable 11" to 14" and wiper blade 11"
• Compact W5 series wiper motor is suitable for small to medium-sized boats
• Adjustable sweep angle 90° or 110°
• Self-park position can be adjusted to port or starboard (standard setting is 90° port)
• Standard wiper arm features a straight connection to fit the supplied wiper blade
• Blade includes a zinc-plated steel backer with natural rubber profile
• 3-year limited warranty

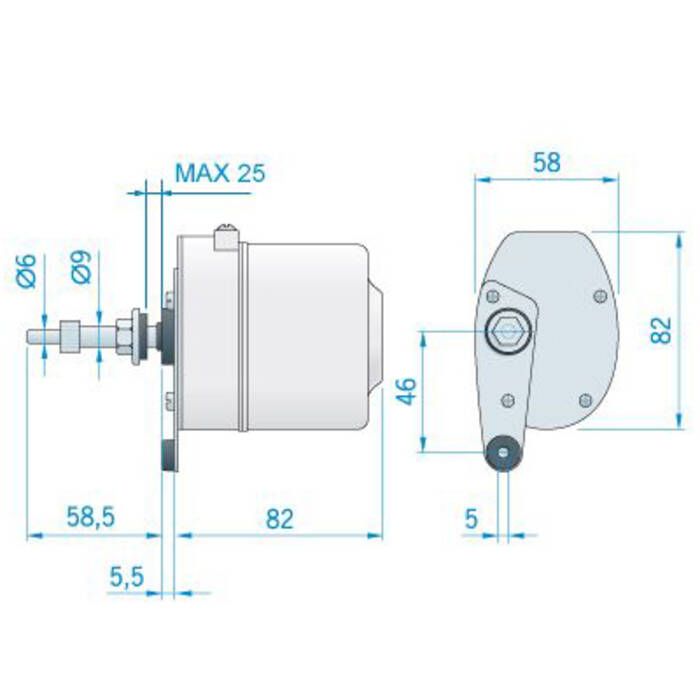

Specifications:

• Wiper Arm / Blade Combination: 11" to 14" arm / 11" blade
• Adjustable Sweep Angle: 90° or 110°
• Mount: Bulkhead
• Max. Bulkhead Thickness: 1"
• Driveshaft Length: 2.3"
• Torque: 5 Nm
• Voltage: 12V DC
• Rated Amp Draw: 1.4A
• Fuse: 3A

Motor Installation Instructions

Product Brochure (2.76 MB)
