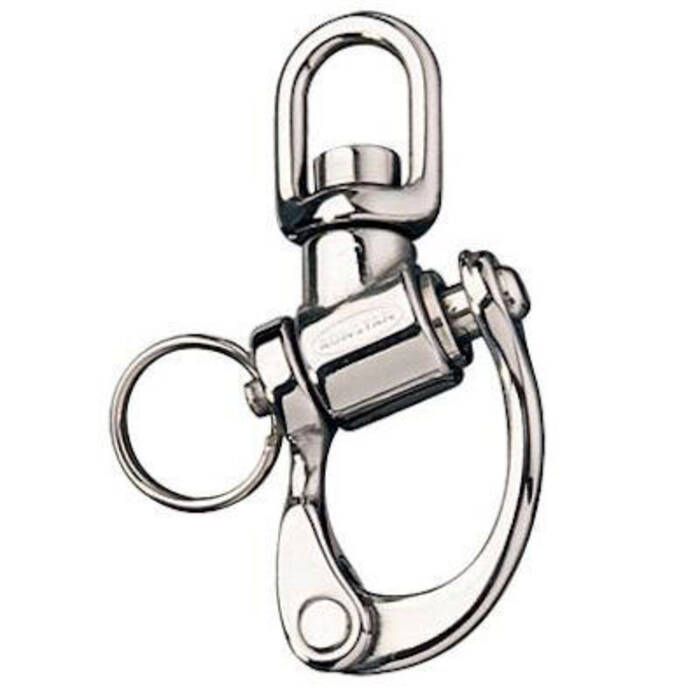

Ronstan Snap Shackle - RF6111

Features:

• Ronstan RF6111 Snap Shackle
• Type: Trunnion, Small Swivel Eye
• Heavy duty plunger springs and precision components ensure dependable service
• Body and hasp profiles are designed for easy clearance of lines and fittings when released
• High strength to weight ratio. Split ring on plunger pin is spot welded for security
• A lanyard can be attached to the plunger pin for easy opening

Specifications:

• Line Size: 3/8"
• Material:
  • Grade 15-5PH investment cast stainless steel body and hasp
  • Grade 316 stainless steel plunger pin and spring
• Maximum working load: 1650 lbs
• Breaking load: 3310 lbs
• Weight: 2 oz

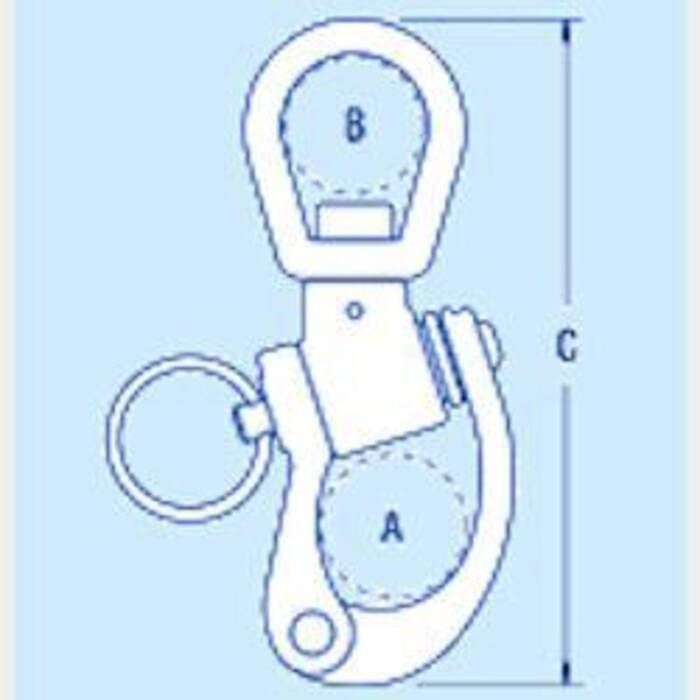

• Dimensions:
  • A: 5/8"
  • B: 1 13/32"
  • C: 2 3/4"
