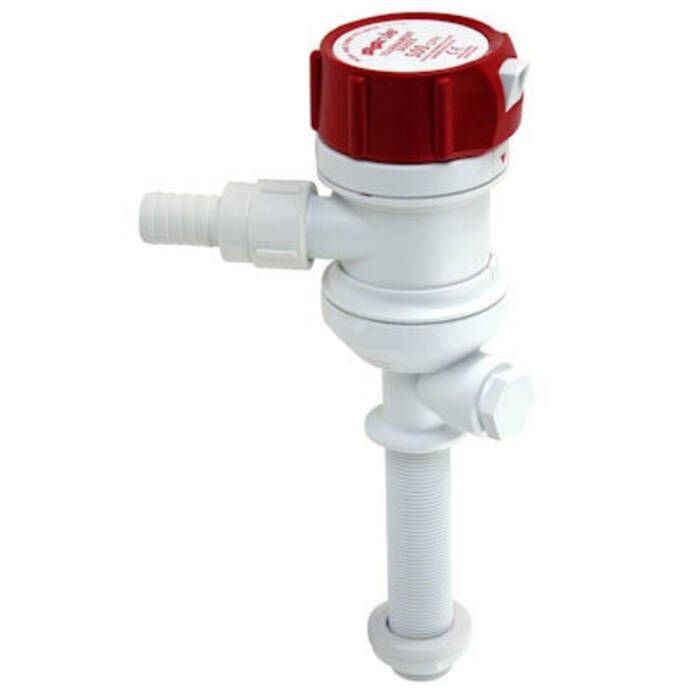

Rule "STC" Tournament Series Livewell/Baitwell Pump

Rule Tournament Series Livewell / Baitwell Pumps feature versatile hose mounting options and an innovative cartridge removal system.

Features:

• High capacity pump designed for livewell tanks up to 44 Gal
• Spring loaded one-hand, push-button cartridge removal system
• Pump motors offer long service life, outstanding reliability, performance and durability
• Water-cooled housing, silent running and vibration-free operation
• Advanced anti-airlock protection
• Rotatable base allows positioning of discharge hose in any direction
• Threaded nylon hose barb attachments allow for multiple hose mounting options
• Built-in dual port option
• Positive snap motor cartridge locking mechanism
• Rule Pumps carry a 3 year warranty from the date of purchase

Inlet Options:

• C Series with 4" angled pick-up tube for thru-hull applications
• FC Series with 1" pick-up tube for seacock applications
• STC Series with 4-3/4" straight pick-up tube for thru-hull applications

110 GPH Specifications:

• Rule Model No. 405STC
• Flow Rate / Output: 1100 GPH
• Port Size: 1-1/8"
• Nominal Voltage: 12V DC
• Max. Current Draw: 3.3A
• Fuse: 6A

500 GPH Specifications:

• Rule Model No. 401STC
• Flow Rate / Output: 500 GPH
• Port Size: 3/4"
• Nominal Voltage: 12V DC
• Max. Current Draw: 2.1A
• Fuse: 2.5A

800 GPH Specifications:

• Rule Model No. 403STC
• Flow Rate / Output: 800 GPH
• Port Size: 3/4"
• Nominal Voltage: 12V DC
• Max. Current Draw: 2.8A
• Fuse: 5A

Data Sheet
