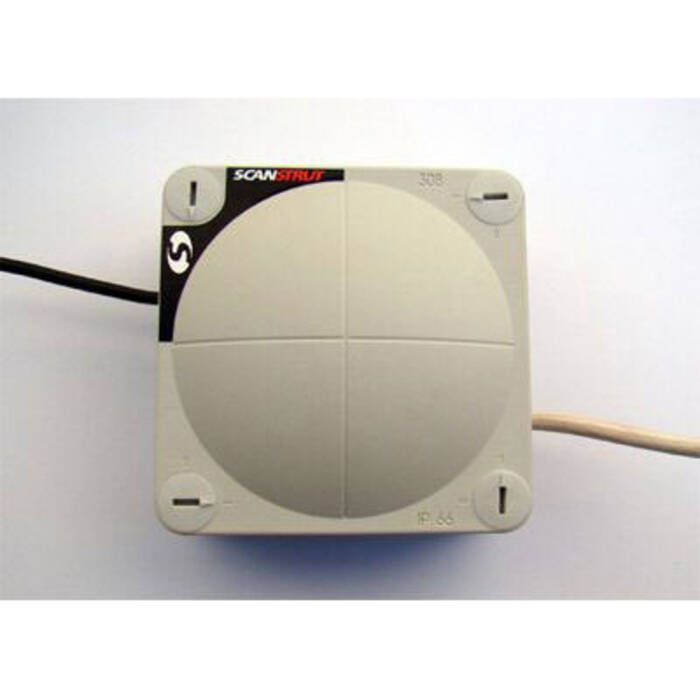

Scanstrut Deluxe Junction Box - SB-8-10

The Scanstrut Deluxe Junction Box provides secure, watertight connections for marine electrical cables onboard any boat, guaranteeing protection against water ingress.

Features:

• Secure, watertight connections for marine electrical cables
• Manufactured from glass reinforced plastic
• Capacity for up to 8 cables to enter the box

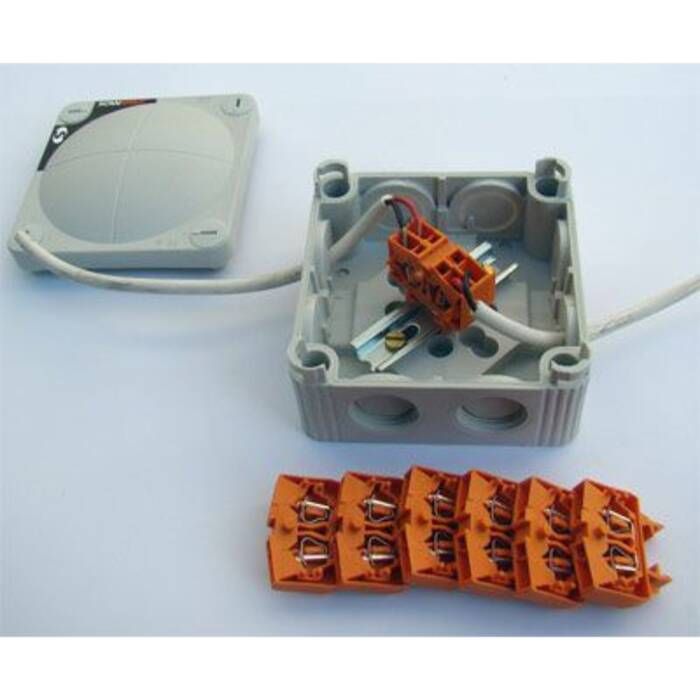

• 5 screw-down terminals
• Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress
• Can be fitted directly to the required mounting surface
• Surface mounting bracket also included to allow removal of the box for inspection if necessary
• For high risk of severe exposure to water ingress, a cable seal upgrade kit is available to upgrade your Junction Box to IP67 (Model # SB-2G, (2) Cable Seals per pack)

Specifications:

• Max cable: 12 mm (0.5")
• Wire gauge: 16 (1.5 mm) - 11 (4 mm)
• Voltage rated: 400V
• Current rated: 32A
• No. of connections: 5
• Dimensions: 2" H x 3-3/8" L x 3-3/8" D (51 mm x 85 mm x 85 mm)
