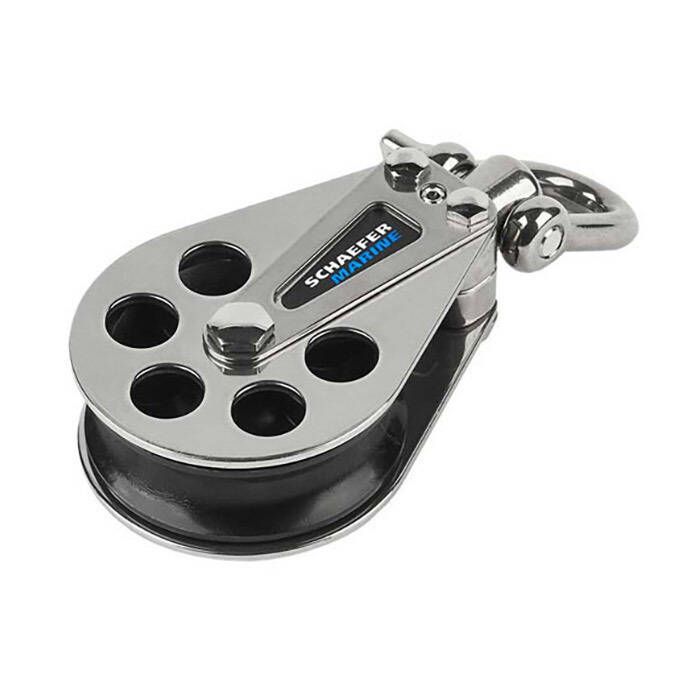

Schaefer 8 Series Block - 08-05

The Schaefer 8 Series Stainless Steel Block (08-05) is strong, low friction and easy to disassemble for cleaning. It provides smooth and reliable operation under the toughest conditions.

Features:

• 3-Way head allows free swiveling or front/side set positions
• Smooth UV resistant Delrin™ sheave runs on a Nomex™ /Teflon™ Bearing
• Bolted construction for strength and easy disassembly for cleaning
• Forged stainless steel D-shackle

Specifications:

• Typical Boat Size: Mainsheet systems, halyard leads, genoa leads to 42', Control lines to 52'
• Maximum Line Size: 9/16" (14 mm)
• Safe Working Load: 2,750 lbs (1250 kg)
• Pin Diameter: 5/16"
• Sheave Diameter: 2-3/8" (60 mm)
• Sheave Width: 13/16" (21 mm)
• Dimensions: 5-5/8" (143 mm) L x 2-3/8" (60 mm) W x 1-3/32" (28 mm) T
• Weight: 12 oz. (340 g)
