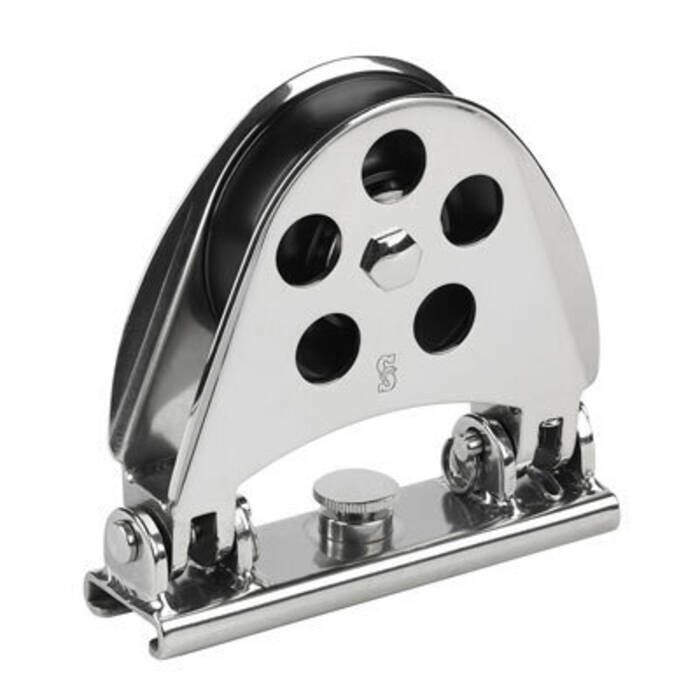

Schaefer Half-Moon Lead Block On T-Track Slider - 32-33-UC

Schaefer's Half-Moon Lead Block provides a rugged low profile winch lead that spreads sheet loads over several track fasteners for maximum strength.

Features:

• Centered spring set-pin locks slide in place and prevents snagging or accidental release
• Block articulates up to 45° to either side of the track
• Springs keep block upright and off the deck when not under load
• Often used to provide a proper lead angle to foot or turning blocks near the cockpit
• Beautifully finished heavy duty stainless steel
• Bolted construction allows complete disassembly for inspection and maintenance
• Aluminum sheave with Torlon™ ball bearings
• Polyethylene liners reduce friction on slide

Specifications:

• Boat size: Up to 38' (11.5 m)
• Maximum displacement: 18,000 lbs (8182 kg)
• Maximum sail area: 715sq feet (66 m2)
• Track size: 1-1/4" x 3/16" (32 x 5 mm)
• Maximum line size: 3/4" (19 mm)
• Safe working load: 5000 lbs (2270 kg)
• Dimensions: 5-1/2" x 1-5/8" x 5 7/32" (140 x 41 x 140mm)
• Bearing height: 2 3/32" (54 mm)
• Sheave diameter: 3 1/4"(83 mm)
