Scout WAVE Omnidirectional TV Antenna

Package Includes:

• Wave Antenna
• 12V Power inserter / splitter
• 12V Fused power cable
• Coax cable 75 Ohm 10 meter (33')
• TV cable 1 meter (3.3')
• F Type connectors (2 pcs)
• Screws (2 pcs)
• Washers (4 pcs)
• Grower washers (2 pcs)
• Nuts (4 pcs)

Features:

• The Scout Wave is a compact-sized omnidirectional TV and FM antenna

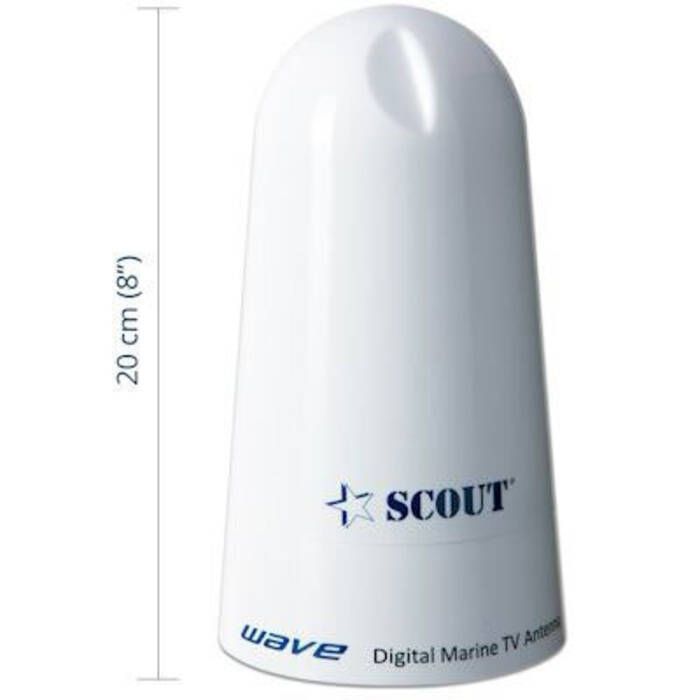

• Dimensions: 105 mm (4") diameter and 200 mm (8") height
• Designed to receive all available analog and digital terrestrial TV, FM signals through 360 degree radius
• Ideal for any type of boat
• Omnidirectional design eliminates the time needed to locate the direction of the TV and radio transmitter

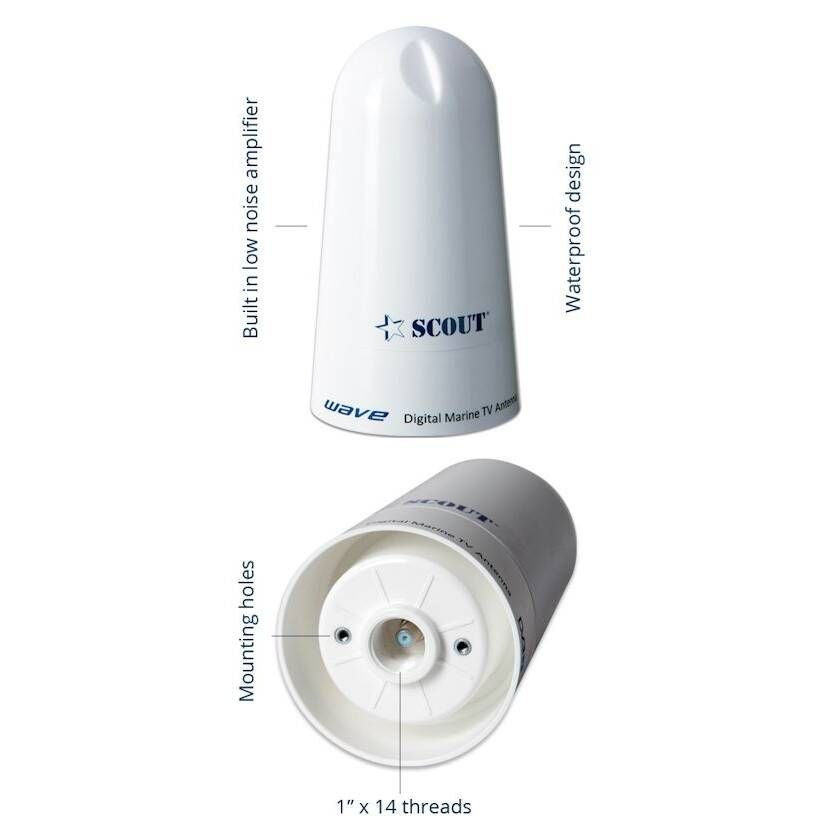

• Built-in high gain amplifier (25 dB) with low noise figure guarantees an excellent picture quality
• Includes both on horizontal and in vertical polarization
• The splitter/power inserter included with the antenna allows to connect two devices at the same time, TV or radio FM
• The waterproof casing is UV-inhibited, to avoid color deterioration
• Easy to install both on standard 1" x 14 threaded mounts or on deck as a permanent, through-hole mount solution (onto a non-metal surface or enclosure)

Specifications:

• Reception Omnidirectional 360°
• Frequency Range 40-860 MHz
• Impedance 75 ohm
• Channels 2-69
• Gain 25 dB
• Input power 12V DC
• Noise <1.7 dB
• Output: (2)
• Connectors: Type F
• Diameter 11 cm (4")
• Height 20 cm (8")
• Material: UV resistant ASA
