Sea-Dog Vertical Fused Switch Panel - 422110-1

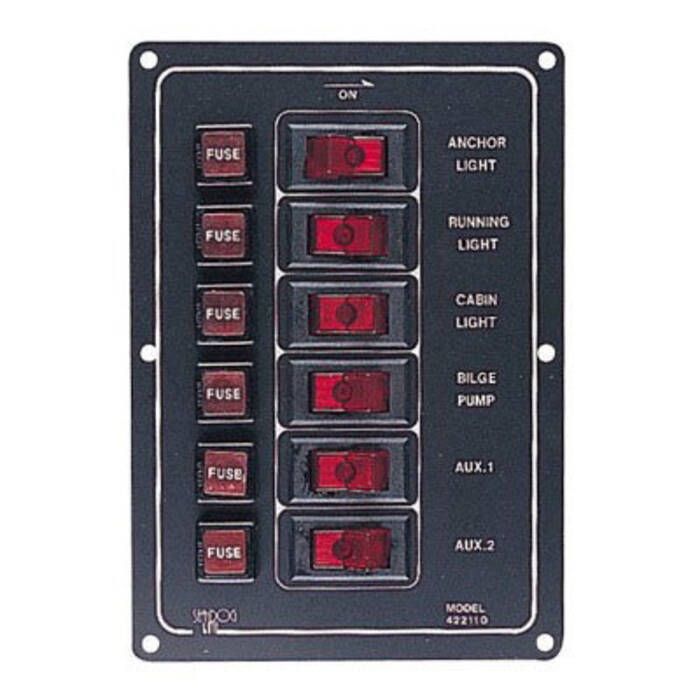

Sea-Dog's Vertical Fused Switch Panel features six 15A 12 VDC illuminated SPST On/Off rocker switches and six 10A 12 VDC fuse holders.

Features:

• Vertical switch panel with (6) DC circuit fuse holders and (6) illuminated DC switches
• Stamped anodized aluminum panel material
• Includes sheet of 20 preprinted decals to customize to specific applications
• Fuses: (8)
  • (2) 3 Amp
  • (4) 5 Amp
  • (2) 10 Amp
• Installs with six #6 RH fasteners (not included)

Specifications:

• Panel material: Stamped anodized aluminum
• Panel rating: 12V, 37 Amps total
• Individual circuit 10 amps maximum

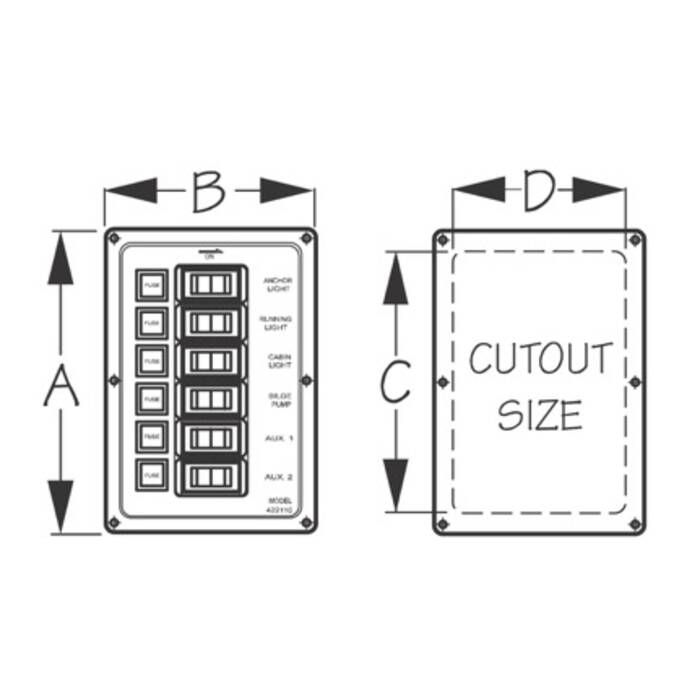

• Dimensions:
  • A: 6 1/2"
  • B: 4 1/2"
  • C: 5 1/2"
  • D: 3 1/2"

Sea-Dog Aluminum Vertical Switch Panel (422110-1) Installation Instructions
