SeaStar Solutions Amega Series 6-Gauge Inboard/Sterndrive Set - 68363P

Seastar Solutions® (formerly Teleflex) Amega Series 6-Gauge Inboard/Sterndrive Set

Features:

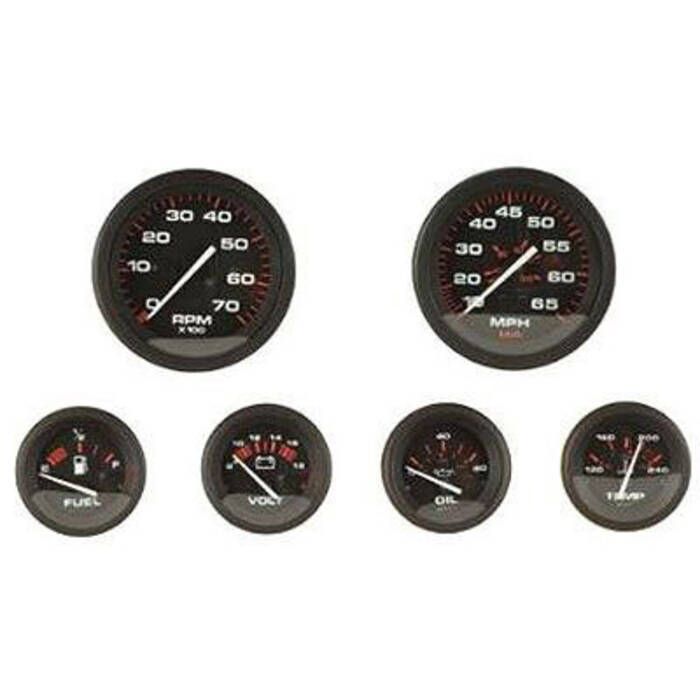

• Inboard/Sterndrive set includes the following (6) gauges:
  • 3" Speedometer (10 - 65 MPH) (Mechanical - pitot and hose included)
  • 3" Tachometer (7000 RPM)
  • 2" Fuel Level
  • 2" Voltmeter (8 - 18V DC)
  • 2" Water Temperature (120 - 240°)
  • 2" Oil Pressure (80 PSI)
• Enhanced illumination: through-dial and perimeter lighting for excellent readability at night
• Scratch-resistant domed glass lenses shed water
• Low-profile bezels follow the curve of the lens to eliminate water trapping
• U.S. and metric scales, with ISO symbols, where appropriate
• Optional square bezels for modular appearance (purchase separately)
• 2-year limited warranty

Specifications:

• Seastar Solutions Model No. 68363P
• Style: Amega Series
• Size: 2" and 3"
• Dial: Perimeter and through-dial lighting, black dial with white numerals and red graduations, black bezel, contoured white analog pointer, and domed glass lens
• Nominal Voltage: 12V DC
• Current Draw: 0.10 - 0.15 Amp
• Operating Temperature: -40 to +70°C
• Ingress Protection (gauge front): IP65 (Dustproof/protected against jets of water from all directions)
• Cut-Out: 2.13" dia. and 3.43" dia
