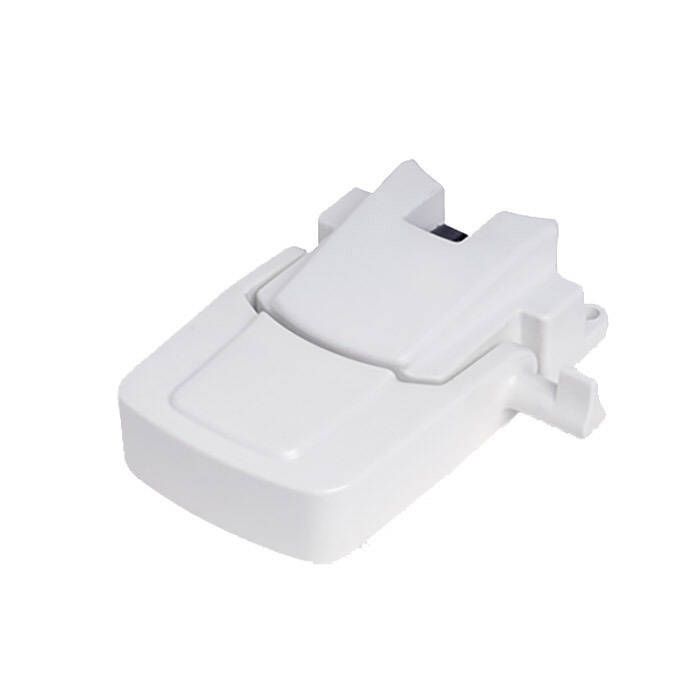

SHURflo Bilge Switch - 359-111-30

Shurflo Bilge Switch is a Mercury-free standard automatic float switch. It's ignition protected and operates with 12 or 24 VDC. The switch activates the bilge pump when the water level reaches 1-3/4". It turns off when the water level reaches 3/4".

Features:

• Mercury-free standard automatic float switch
• Switch activates bilge pump when water level reaches 1-3/4" turns off when water level reaches 3/4"
• Manual test feature
• Remote or direct mounting
• 3' tinned wire assembly
• Ignition protected
• 3-year warranty

Specifications:

• Switch type: Mechanical
• Nominal voltage: 12 or 24V DC
• Max. current draw: 12 Amps @ 12 VDC or 6 amps @ 24 VDC
• Operating temperature range: 33°F to 180°F
• Dimensions: 1.28" H x 3.62" W x 4.2" L

Operating Instructions
