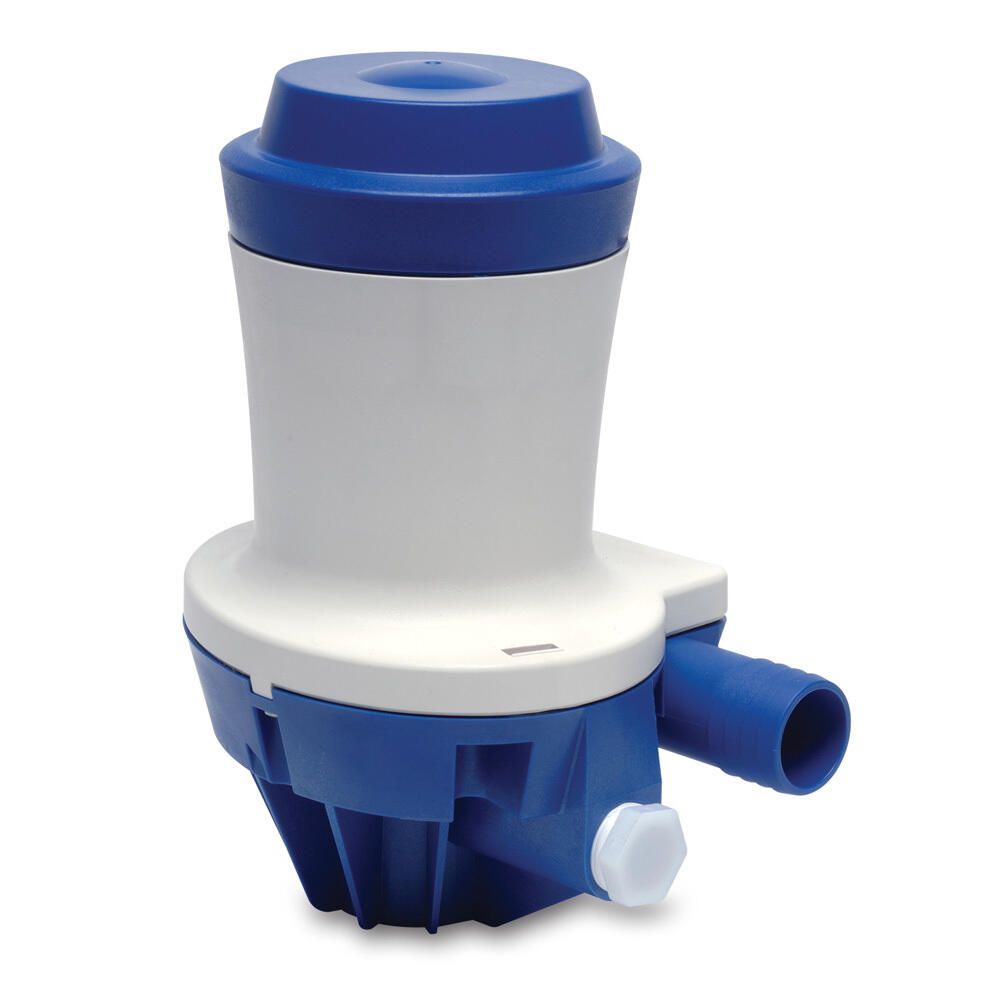

SHURflo High Flow Livewell Pump

Heavy duty and built to last. Shurflo High Flow Livewell Pumps are built to withstand the harsh marine environment. Submersible and rated for continuous duty, Shurflo's livewell pump is equipped with an anti-airlock feature to ensure optimal performance and is constructed with a high density nylon housing. Engineered with the finest components that continue to improve Shurflo's high quality standard, the Shurflo livewell pumps performance and product reliability are unmatched.

Features:

• Patented Water Cooled Motor
• Extended Motor Life
• 6' Tinned Wire
• Washdown Port
• Submersible
• Anti-Airlock
• ISO 8846/8849
• 2 Year Warranty
• CE Listed

Specifications:

• 358-001-10:
  • Ports: 1" Inlet NPT 1-1/8" Outlet Barb
  • Flow Rate: 1500 GPH (5678 LPH)
  • OEM Model: 358-001-00
  • Amps (Max): 8
  • Voltage: 12 VDC
• 358-011-10:
  • Ports: 1" Inlet NPT 1-1/8" Outlet Barb
  • Flow Rate: 2000 GPH (7570 LPH)
  • OEM Model: 358-011-00
  • Amps (Max): 10
  • Voltage: 12 VDC
