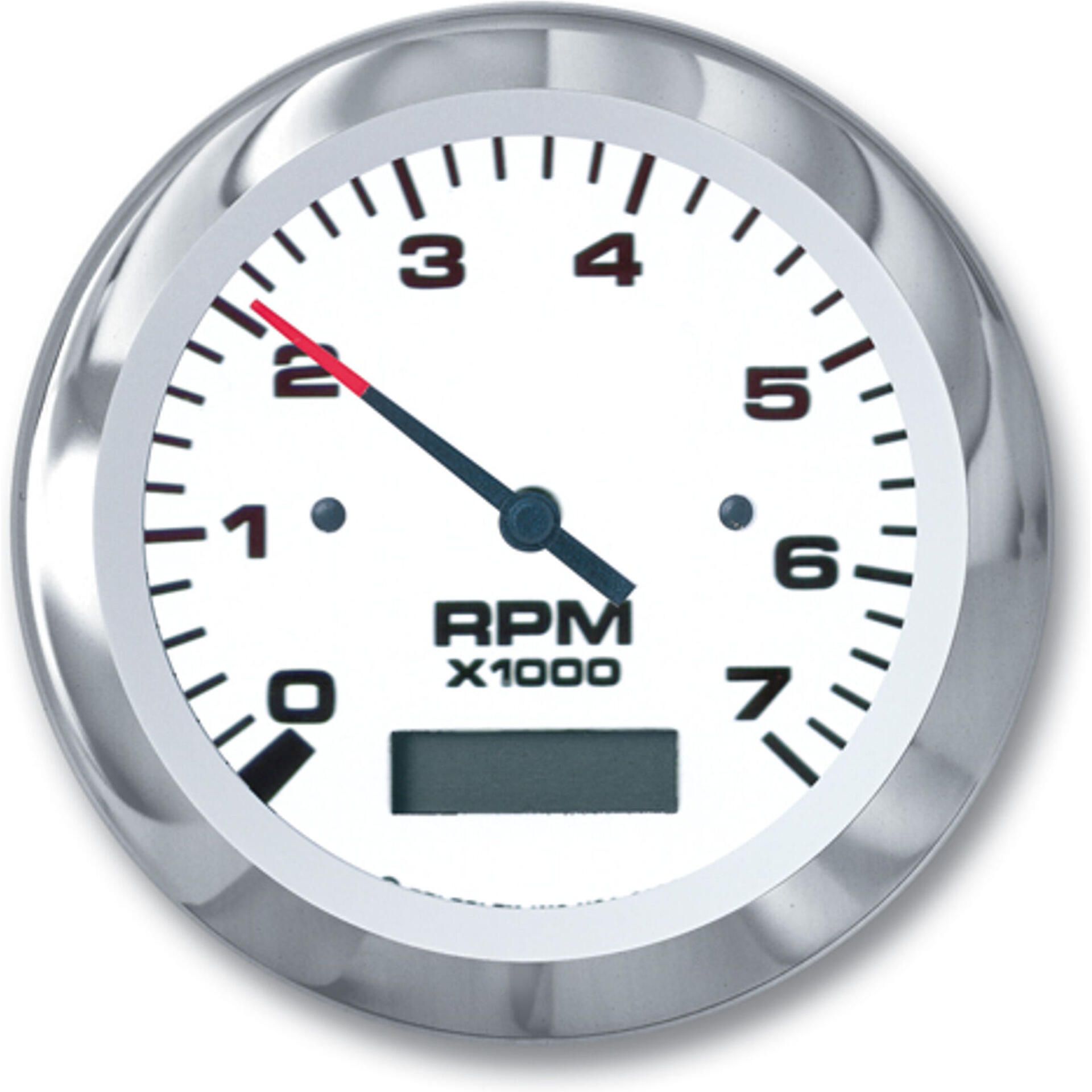

Sierra Lido Series Tachometer/Hour Meter - 65129P

Features:

• Applications: Outboards and 4-Stroke Gas Engines
• White dial, black numerals, black pointer with fire-orange tip
• Scratch resistant curved glass lens with polished stainless steel near-flush bezel
• White perimeter and red thru-dial lighting
• Tachometer: Mariner 30 & 40 HP (2-cylinder) engines require a module (Mercury P/N 17461A2)

Specifications:

• Dial Range: 0 - 7000 RPM
• Size: 3"
• Sender Code: O/B ALT./COIL
• Voltage: 12V DC
• Current Draw: 0.10 - 0.15A
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Ingress Protection: IP 65
• Bezel Outer Diameter: 3.74"
• Housing Outer Diameter: 3.39"
• Hole Size: 3.43"
