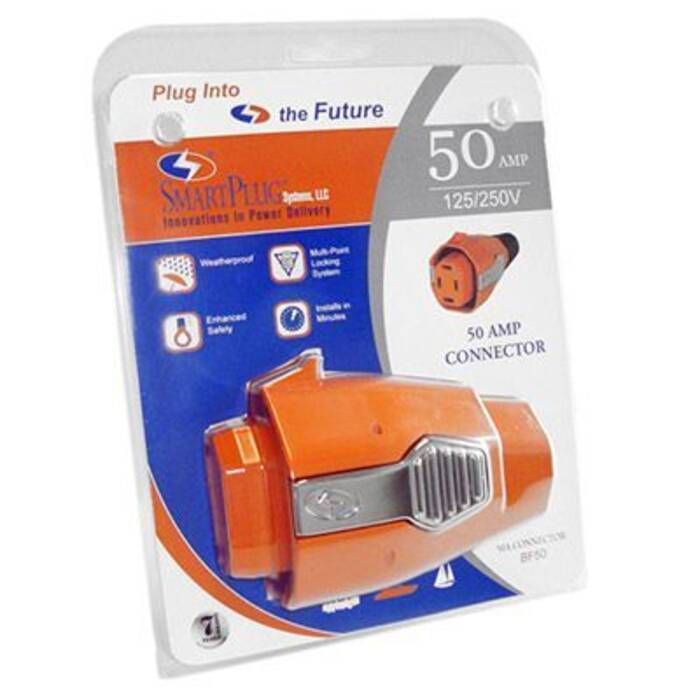

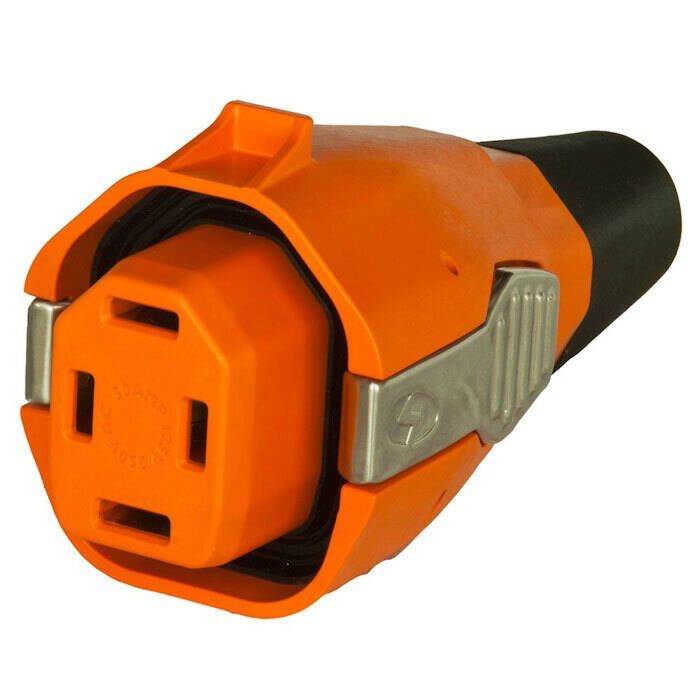

SmartPlug Locking Female Connector - 50A - 125/250V - BF50

SmartPlug® 50 Amp 3-pole, 4-wire female connector easily installs / retrofits onto the boatside end of your existing 125 or 250V shore power cord (no adapters needed)

Features:

• Works with SmartPlug 50 Amp inlet (BM50S)
• Automatic alignment pushes straight in, no twisting required
• Straight electrical blades for increased contact area
• Increase pin and clip surface area maximizes electrical transfer
• Larger contact surface eliminates heat
• Multi-point locking system
• Spring-loaded stainless steel side levers and inlet cover cap lock
• Eliminates stress and movement of plug body to prevent loose connections of pins and clips
• Weatherproof face seal and (2) separate cord seals included for 125 or 250V cable diameters
• Powerful strain-relief system secures cord with stainless steel screws
• 7-Year limited warranty

Specifications:

• Rating: 50 Amp, 125 / 250V, 3-pole, 4-wire grounding
• Configuration: NEMA SS2-50R
• Material: Marine-grade plastic housing
• Color: Orange

SmartPlug Inlet and Connector Specifications Sheet
