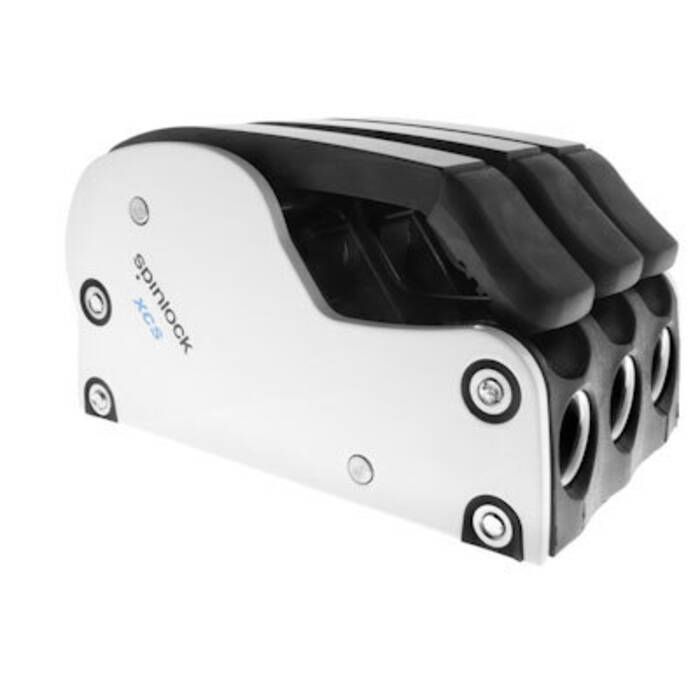

Spinlock Triple XCS Power Clutch

The Spinlock Single XCS Power Clutch is perfect when the mounting location requires extra durability, such as mast mounting or when matching surface finishes for aesthetics. The Power Clutch offers a range of quality finished to match your deck or rig.

Features:

• Aluminum sides for sustained higher load operation
• Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics
• Mid to higher load rope holding
• Reliable all around performance
• Select 6 - 10 mm (1/4" - 3/8") for best performance on smaller diameter lines (XCS0610)
• Select 8 - 14 mm (5/16" - 9/16") for best performance across the rope range (XCS0814)
• Extruded alloy handle with soft end grip
• Secure handle locking in open and closed position
• Easy access to fasteners
• Handle labels supplied

Specifications:

• Weight: 1610 g (56.4 oz)
• Fasteners: 6 x M8 (5/16") CSK Head (not supplied)
• XCS0610
  • Lines: 6 - 10 mm (1/4" - 3/8") and optimized for 8 - 10 mm (5/16" - 3/8") lines. Strongly recommended for high strength small diameter line
  • Loads up to 700 kg (1543 lbs) per line
• XCS0814
  • Lines: 8 mm - 14 mm (5/16" - 9/16")
  • Loads up to 1200 kg (2640 lbs) per line
