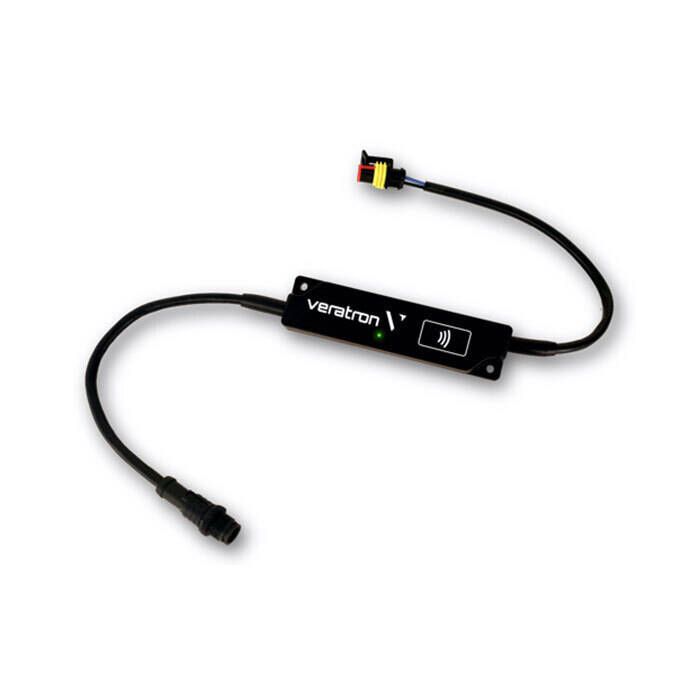

Veratron LinkUp Single-Sensor Gateway - Resistive - B00042201

Veratron's LinkUp Resistive Single-Sensor Gateway converts analog sensors such as tank level, rudder angle, engine or transmission temperatures or pressures to NMEA 2000.

Features:

• Easiest way to interface your boat data to the latest generation of NMEA 2000 glass cockpits
• Waterproof sensor connection
• No external power supply required
• Converts vessel and engine information to NMEA 2000
• Explosion proof housing body for engine room installation
• Standard DeviceNet M12 plug to interface NMEA 2000
• Contactless configuration with passive NFC tag embedded
  • To configure the sensor, some parameters must be calibrated through the Link Up gateway like sensor type, calibration or warning threshold
• Wireless Link Up Configurator mobile App

Specifications:

• Resistive module
• Input Signal: 0 - 400 Ohms
• Operating voltage: 6 - 16.5 V
• Nominal voltage: 12 V (from NMEA 2000 network)
• Power consumption: <100 mA
• NMEA 2000 LEN: 2
• Protection class: IPX7 According to IEC60529 (when connected)
• Operating temperature: -22° F to 176° F
• Flammability: UL94-HB
• Sensor cable length: 25 cm
• NMEA 2000 cable length: 25 cm
• Sensor plug:
  • TE AMP Superseal 1.5 2 pins - Female
  • Housing: 282080-1
  • Terminals: 282403-1 (x2)
  • Sealing: 281934-2 (x2)
• Counterpart for sensor plug:
  • TE AMP Superseal 1.5 2 pins - Male
  • Housing: 282104-1
  • Terminals: 282404-1 (x2)
  • Sealing: 281934-2 (x2)
• NMEA 2000 plug: DeviceNet Micro-C 5 pins - Male

Veratron Linkup Single-Sensor Gateway - Resistive Instruction Manual (1.44 MB)
