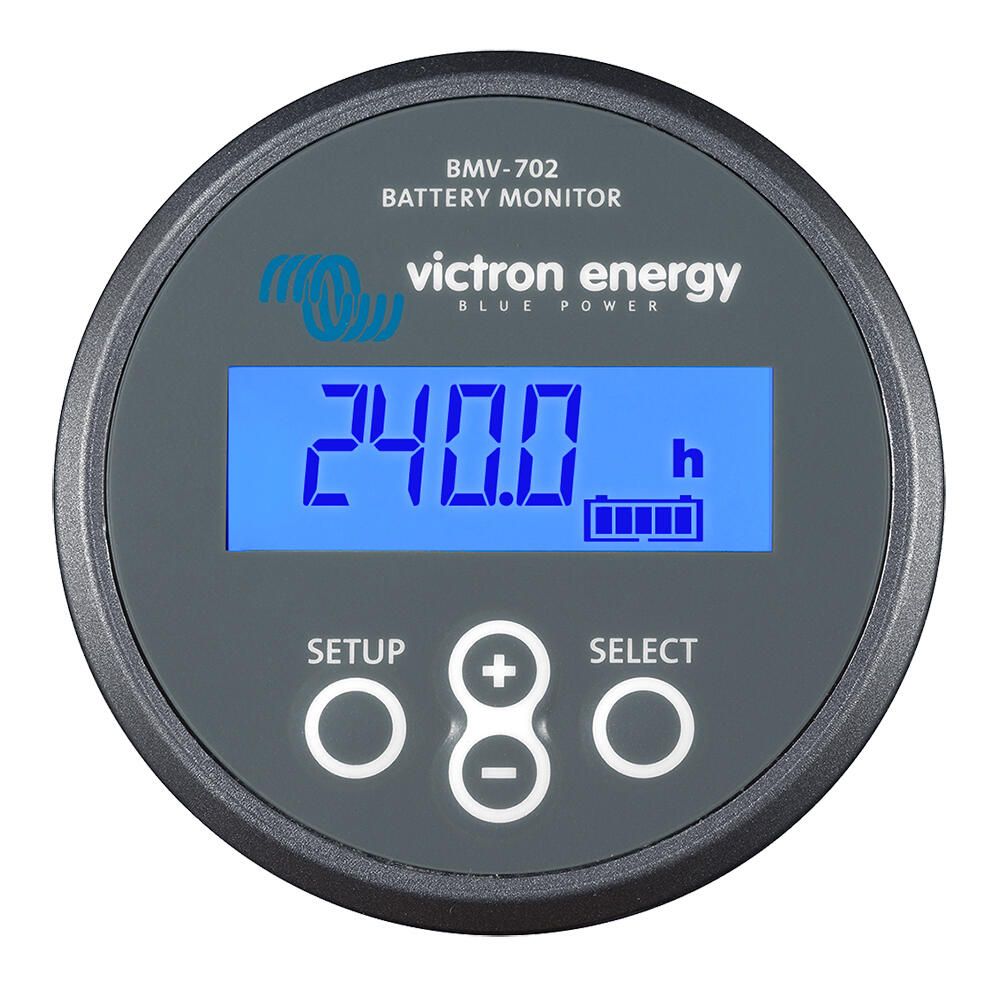

Victron Energy BMV-702 Precision Battery Monitor
Item: #969373 | Part Number: Not Selected
The Victron Energy BMV-702 Precision Battery Monitor delivers accurate, real-time insight into your battery's state of charge, voltage, and current flow. With advanced features like dual voltage inputs, programmable alarms, and relay control, it helps you manage battery health and power usage with confidence.
Victron Energy BMV-702 Precision Battery Monitor Item # 969373
Description
The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
The BMV-702 differs from the BMV-700 as it features an additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.
Features:
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non critical loads or to run a generator when needed
- 500A quick connect shunt and connection kit
- Shunt selection capability up to 10,000A
- VE.Direct communication port
- Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
- Wide input voltage range: 6.5 - 95V
- High current measurement resolution: 10 mA (0.01A)
- Low current consumption: 2.9 Ah per month (4 mA) @ 12V and 2.2 Ah per month (3 mA) @ 24V
- Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings
