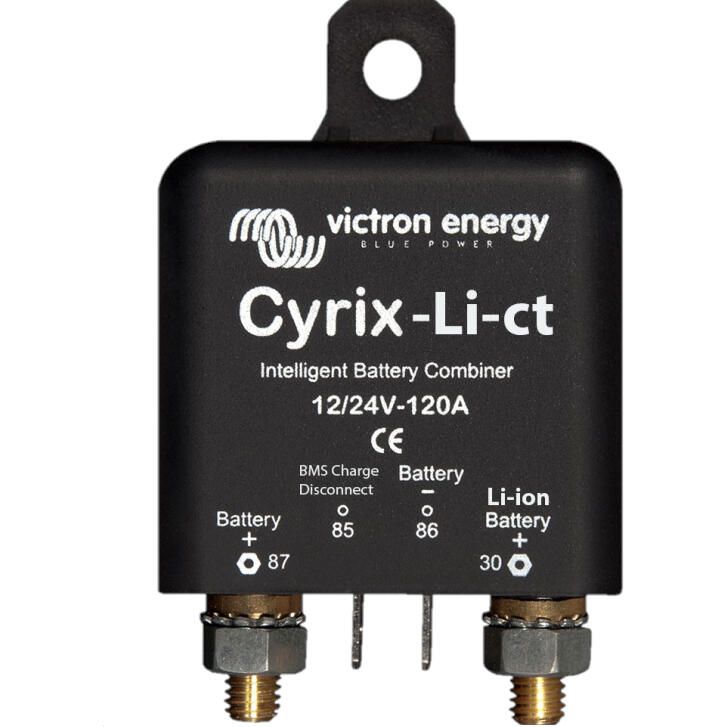

Victron Energy Cyrix-Li-ct Intelligent Li-Ion Battery Combiner - 12/24V

The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is virtually no voltage loss, so the output voltage of alternators or battery chargers does not need to be increased. When used as part of a control system for a Lithium Ion battery bank, this Cyrix intelligent battery combiner is used to disconnect an auxiliary battery when the main Lithium-Ion battery is getting full. It can be controlled remotely by the Battery Management System. It operates with a time delay to avoid nuisance activity.

Features:

• For use in systems of 12 or 24V
• The Cyrix-Li-Ct will automatically adjust to a 12V or 24V system
• The CT in the part number refers to Controlled Temperature. The unit will disconnect if it overheats
• A remote manual override combine button can be installed if required
• IP54 protection

120A Data Sheet

120A User Manual

230A Data Sheet

230A User Manual
