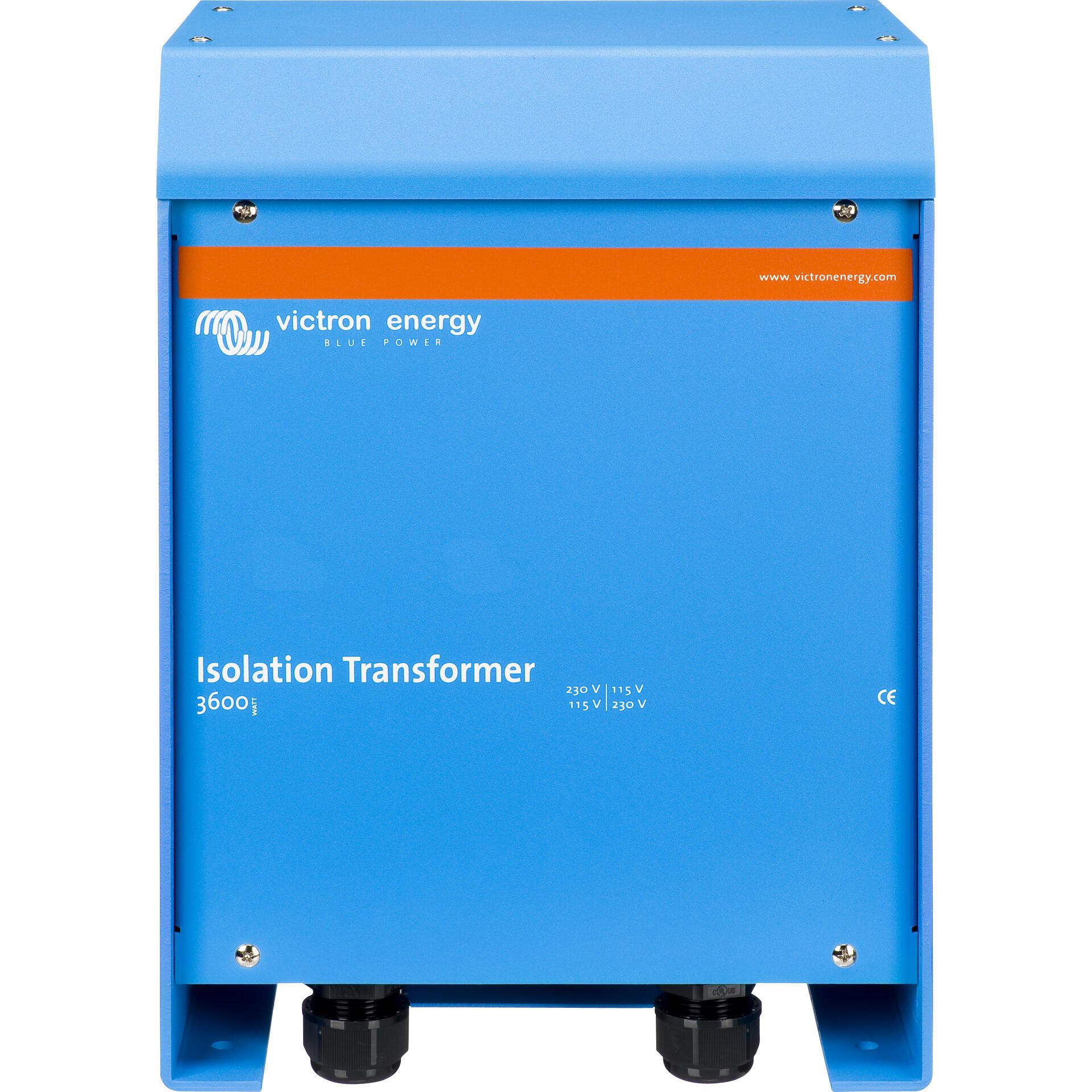

Victron Energy Isolation Transformer

Indispensable in professional marine energy systems. It prevents electrolytic corrosion and above all serves as a device to guarantee a safe electric system. Toroidal wound technology for quietness and high efficiency. Soft start circuitry will ensure that the shore circuit breaker will not trip when plugged in.

Features:

• Eliminates any electrical continuity between AC shore power and the boat
• Prevents electrolytic corrosion and above all serves as a device to guarantee a safe electric system
• A fuse will blow or a GFCI (Ground Fault Current Interrupter) will trip in case of a short circuit or current leakage to ground
• The Automatic 3600W option will automatically switch to 115V or 230V supply, depending on input voltage
  • Supply 88 - 130V: Switches to 115V supply
  • Supply 185 - 250V: Switches to 230V supply range

Non-Automatic Manual (3.53 MB)

Automatic Manual (3.53 MB)

2000W Technical Drawing

3600W Technical Drawing
