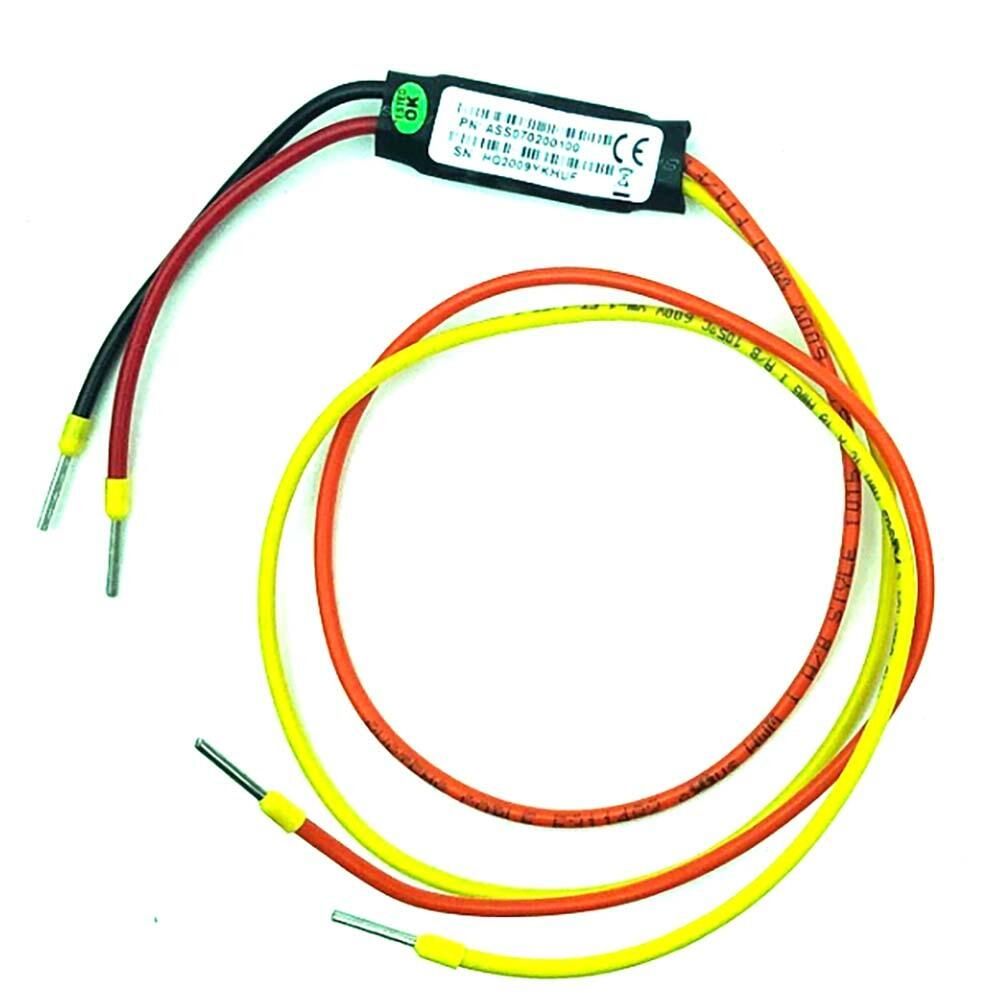

Victron Energy Smart BMS CL 12/100 to MultiPlus Cable - ASS070200100

This cable will allow the MultiPlus 500VA - 1600VA, MultiPlus Compact 800VA - 2kVA and MultiPlus-II models to be used with BMS products that have no VE.Bus interface, such as the Smart BMS CL 12-100 and the small BMS. These MultiPlus models can be controlled from the Load/Charge Disconnect outputs and Load/Charger outputs respectively.

Features:

• Allows the MultiPlus 500VA - 1600VA, MultiPlus Compact 800VA - 2kVA and MultiPlus-II models to be used with BMS products that have no VE.Bus interface
• May be controlled from the Load/Charge Disconnect outputs and Load/Charger outputs respectively
• The cable must be wired to the remote on/off connector of the MultiPlus models:
  • When used with the MultiPlus 500VA-1200VA models connect the black wire to the ON terminal and the red wire to the (+) terminal
  • When used with the MultiPlus Compact 800VA-2kVA models connect the black wire to the middle terminal and the red wire to the right (IN) terminal
  • When used with the MultiPlus-II models connect the black wire to the lower (-) terminal and the red wire to the upper (+) remote on-off terminal
