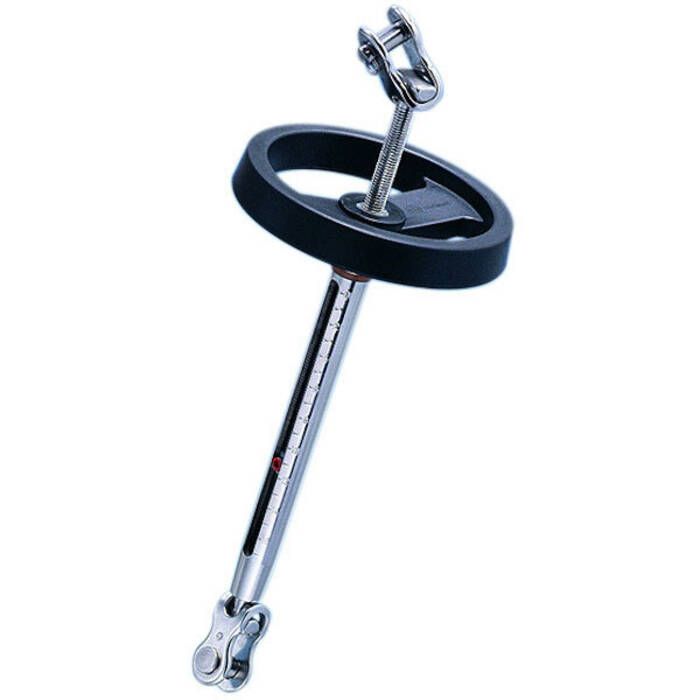

Wichard Backstay Adjusters - 05526

On sailboats the backstay adjuster enables the crew to precisely adjust and control the forestay tension. Control equates to optimum performance of the headsail and guarantees smooth operation of a furling system.

Features:

• When not under sail, the backstay adjuster permits the release of tension on the rig, thereby helping to prolong the life of the rigging and fittings
• The smaller backstay adjusters are made with a wheel system which is strong, quick and easy to use

Specifications:

• Version: Wheel adjuster
• Material: Grade 316L stainless steel
• Applications: 5 / 6 / 7 mm wire diameter:
• Open: 20 1/2"
• Closed: 13 3/4"
• Pin diameter: 1/2"
• Length pin to pin closed / open: 13.78" x 20.47" (350 / 520 mm)
• Toggle length x width: 15 x 20 mm
• Stud diameter: 1/2"
• Functional load: 7,700 lbs
• Breaking load: 11,700 lbs

Note: imperial dimensions are approximate, the manufacturer built this product to metric specs.
