Xantrex

Xantrex Freedom XC Pro Marine Inverter/Charger

Item: #888963 | Part Number: Not Selected
$1,667.70 - $1,987.87
      • Choose an Option
        Out of Stock
        Important Info
        Want an email once available?
        Notify Me
        Total
        $1,667.70 - $1,987.87
        Description

        The Xantrex Freedom XC PRO Marine 2000W Inverter / Charger is a versatile and flexible AC power solution that supports seamless integration with third party monitoring and control systems. It features a 100A (2000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger...

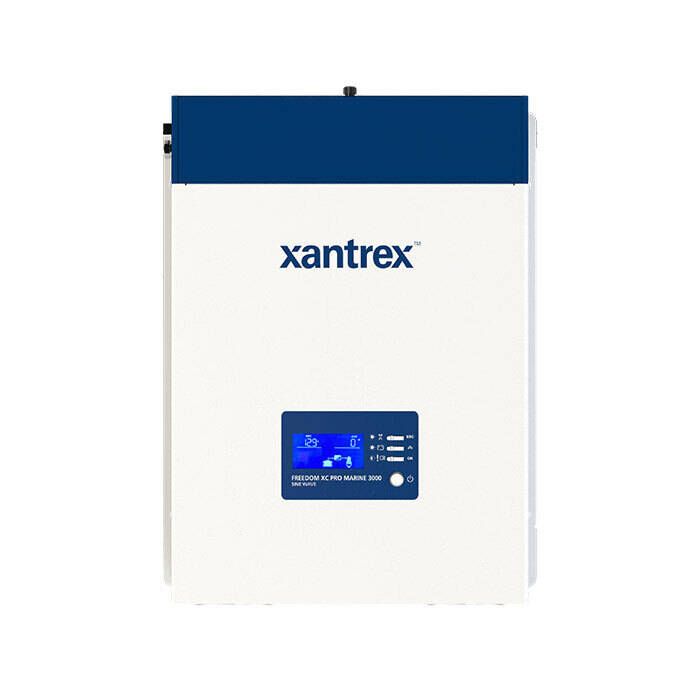

        Image of : Xantrex Freedom XC Pro Marine Inverter/Charger Xantrex Freedom XC Pro Marine Inverter/Charger Item # 888963

        Description

        The Xantrex Freedom XC PRO Marine 2000W Inverter / Charger is a versatile and flexible AC power solution that supports seamless integration with third party monitoring and control systems. It features a 100A (2000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package.

        Features:

        • Surges to 2X continuous power for 5 seconds for motor loads
        • True sine wave AC power for operation of sensitive and motor loads
        • Ignition control to turn inverter on/off via a 12 VDC signal, and to minimize battery drain by switching the inverter off when the ignition key is turned off
        • Wide 10-18 VDC input range ensures inverter operation on high voltage alternators found on many new vehicle chassis
        • Programmable AC under-voltage (85-110VAC) shutdown ideal to operate under weak shore power or generator input
        • Power factor corrected, multi-stage charging utilizes less shore power when charging batteries
          • This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shore power breakers
        • Configurable 3 stage, temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
        • Battery equalization maximizes flooded battery life
        • Dead battery charging down to 0 VDC
        • Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
        • Easily configurable settings to charge any lithium ion battery (BMS required)

        2000W Inverter/100A Charger Specifications:

        General

        • Operating Temperature Range: 4° F to 140° F (-20° C to 60° C), with output derated above 104° F (40° C)
        • Storage Temperature Range -40° F to 158° F (-40° C to 70 °C)
        • Operating Humidity Range: 5% to 95% RH, non-condensing
        • Transfer Relay AC Current Rating: 30 A surge, 24 A continuous
        • DC Input / Output Nominal Voltage (inverting/ charging): 12.0 VDC
        • Dimensions (without flanges): 15.4" (390 mm) x 10.8" (275 mm) x 4.9" (125 mm)
        • Dimensions (with flanges) 16.0" (406 mm) x 12.0" (305 mm) x 4.9" (125 mm)

        Electrical - Inverter

        • AC Output Operating Voltage Options: 120, 110, 108 VAC
        • Continuous Output Power: 2000 W @ 40° C True sine wave (TSW)
        • Continuous AC Output Current: 16.7 A
        • Surge Power: 4000 W (5 sec)
        • Frequency (Configurable): 60 (or 50) Hz
        • Peak Efficiency: 91%
        • Full Load Efficiency: 86%
        • DC Input Operating voltage range: 10.1 - 18.0 VDC
        • DC Input Max Non-Operating Voltage: 25.2 VDC
        • DC Nominal Current at Full Load: 192 ADC

        Electrical - Charger

        • Min Battery Voltage for Charging: 0.0 VDC
        • Max DC Output Voltage: 18.0 VDC (custom battery type)
        • Selectable DC Output Current: User Selectable: 5 - 100 A
        • Full Load Max AC Input Current: 24 Arms
        • Max DC Charge Current (selectable down to 5A): 100A
        • Operating Input AC Pass-Through Voltage Range: 85-140 VAC
        • Safe Non-Operating Input AC Voltage Range: Up to 240 VAC RMS
        • Power Factor at Full Charge Rate: > 98%

        3000W Inverter/150A Charger:

        General

        • Operating Temperature Range: 4° F to 140° F (-20° C to 60° C), with output derated above 104° F (40° C)
        • Storage Temperature Range -40° F to 158° F (-40° C to 70 °C)
        • Operating Humidity Range: 5% to 95% RH, non-condensing
        • Transfer Relay AC Current Rating: 50 A surge, 40 A continuous
        • DC Input / Output Nominal Voltage (inverting/ charging): 12.0 VDC
        • Dimensions (without flanges): 15.4" (390 mm) x 10.8" (275 mm) x 4.9" (125 mm)
        • Dimensions (with flanges) 16.0" (406 mm) x 12.0" (305 mm) x 4.9" (125 mm)

        Electrical - Inverter

        • AC Output Operating Voltage Options: 120, 110, 108 VAC
        • Continuous Output Power: 3000 W @ 40° C True sine wave (TSW)
        • Continuous AC Output Current: 25 A
        • Surge Power: 6000 W (5 sec)
        • Frequency (Configurable): 60 (or 50) Hz
        • Peak Efficiency: 91%
        • Full Load Efficiency: 84%
        • DC Input Operating voltage range: 10.1 - 18.0 VDC
        • DC Input Max Non-Operating Voltage: 25.2 VDC
        • DC Nominal Current at Full Load: 304 ADC

        Electrical - Charger

        • Min Battery Voltage for Charging: 0.0 VDC
        • Max DC Output Voltage: 18.0 VDC (custom battery type)
        • Selectable DC Output Current: User Selectable: 5 - 150 A
        • Full Load Max AC Input Current: 25 Arms
        • Max DC Charge Current (selectable down to 5A): 150A
        • Operating Input AC Pass-Through Voltage Range: 85-140 VAC
        • Safe Non-Operating Input AC Voltage Range: Up to 240 VAC RMS
        • Power Factor at Full Charge Rate: > 98%

        Data Sheet (2.16 MB)
