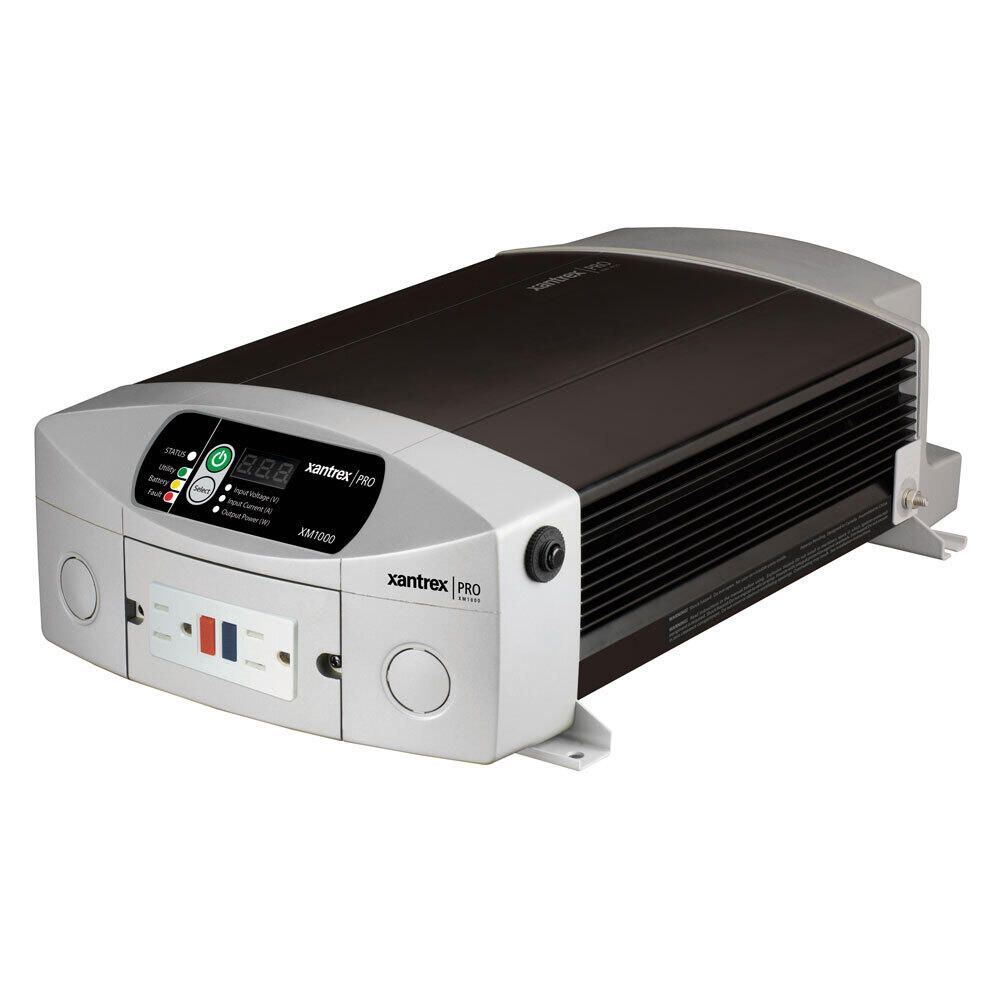

Xantrex Pro Series Power Inverter

Designed for RV and marine electrical systems that already have a battery charger or generator installed, Xantrex PRO Inverters deliver modified sine wave power for small appliances, TVs, and other onboard electronics from a battery bank.

The Xantrex PRO Series Power Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These power inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.

Features:

• Built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available
• Easily powers TVs, small appliances and other onboard electronics
• Built-in 15A circuit breaker protects GFCI connected loads
• Up to 20A pass-through for hardwired loads
• Detachable, digital remote control displays precise inverter, AC source and battery status information from one convenient location
• Conformal-coated electronics provide corrosion resistance
• Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included)
• Battery over-voltage and under-voltage protection
• Automatic overload, short circuit and ground fault protection
• Over-temperature shutdown

1000W Specifications:

• Continuous Power: 1000W
• Surge Rating: 2000W
• Output Current (continuous): 8.3A
• Output Voltage: 115V AC
• Output Frequency: 60 Hz
• AC Output Type: Hardwired or GFCI protected outlet (included)
• Input Operating Voltage: 11 - 15.5V DC
• Dimensions: 4.05" x 8.3" x 12.9"

1800W Specifications:

• Continuous Power: 1800W
• Surge Rating: 3600W
• Output Current (continuous): 15A
• Output Voltage: 115V AC
• Output Frequency: 60 Hz
• AC Output Type: Hardwired or GFCI protected outlet (included)
• Input Operating Voltage: 11 - 15.5V DC
• Dimensions: 4.05" x 8.3" x 15.47"

Owner's Manual

Data Sheet
