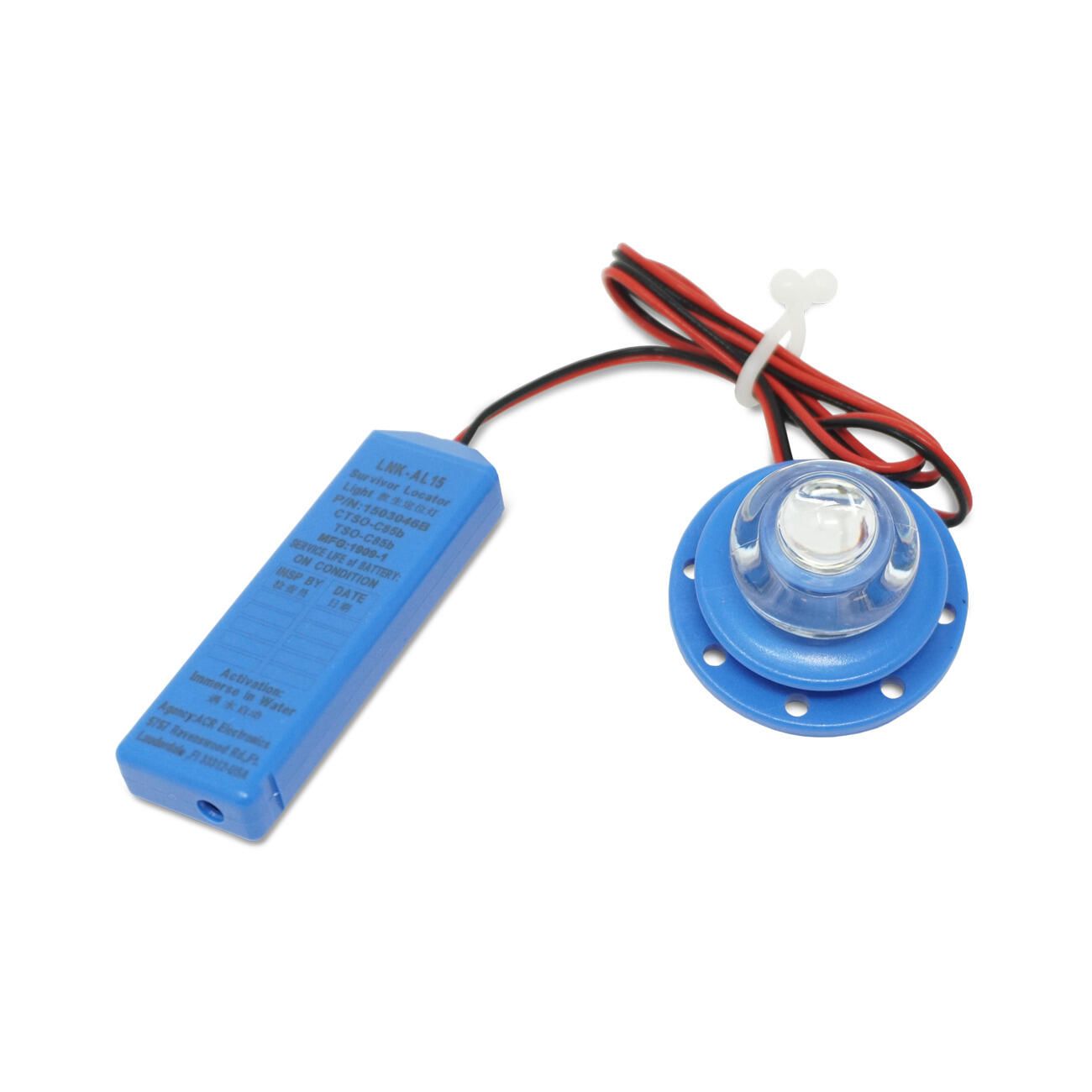

ACR LNK-AL15 Survivor Locator LED Light

The LNK-AL15 is an FAA approved water-activated LED survivor locator light that is approved for use on life vests or life preservers in order to indicate the location of survivors in water as a result of an aviation related accident. The lamp and lens combo of the LNK-AL15 produce a powerful light that will last for a minimum of 8 hours after activation with a minimum light intensity of 1 cd. Throughout its entire operational life, the light will continuously output a steady white light to clearly indicate a survivor's location and increase the probability of rescue.

Features:

• High efficiency LED bulb
• Simple life jacket integration
• Ultra small and light weight design
• Water activated (fresh and salt water)
• Indefinite battery storage life

Specifications:

• Light source: LED
• Light Type: Steady white light
• Weight: 0.99 oz - 1.11 oz (28g - 31.5g) / depending on wire length
• Dimensions:
  • Battery pack body: 2.55" x 0.82" x 0.36" (64.9 x 20.8 x 9.2 mm)
  • Lamp: 1.5" (diameter) x 1.06" (H) (38.2 x 26.9 mm)
• Battery: Water-activated reserve battery
• Activation: Automatic (water-activation)
• Activation time: Within 2 minutes in either fresh or salt water
• Light intensity: > 1 cd
• Horizonal light angle: >= 300°
• Vertical light angle: >= 5°
• Operational life: >= 8 hours
• Storage humidity: <= 80%
• Operational temperature: 2° C - 30° C (35.6° F - 86° F)
• Storage temperature: -30° C - 65° C (-22° F - 149° F)
• Exposed length of wire: 9" - 24" (based on specific product number)
• Warranty: 1 year
