Airmar P79 In-Hull Dual Frequency Transducer

32 Reviews
$142.70 - $279.22
          Want an email once available?

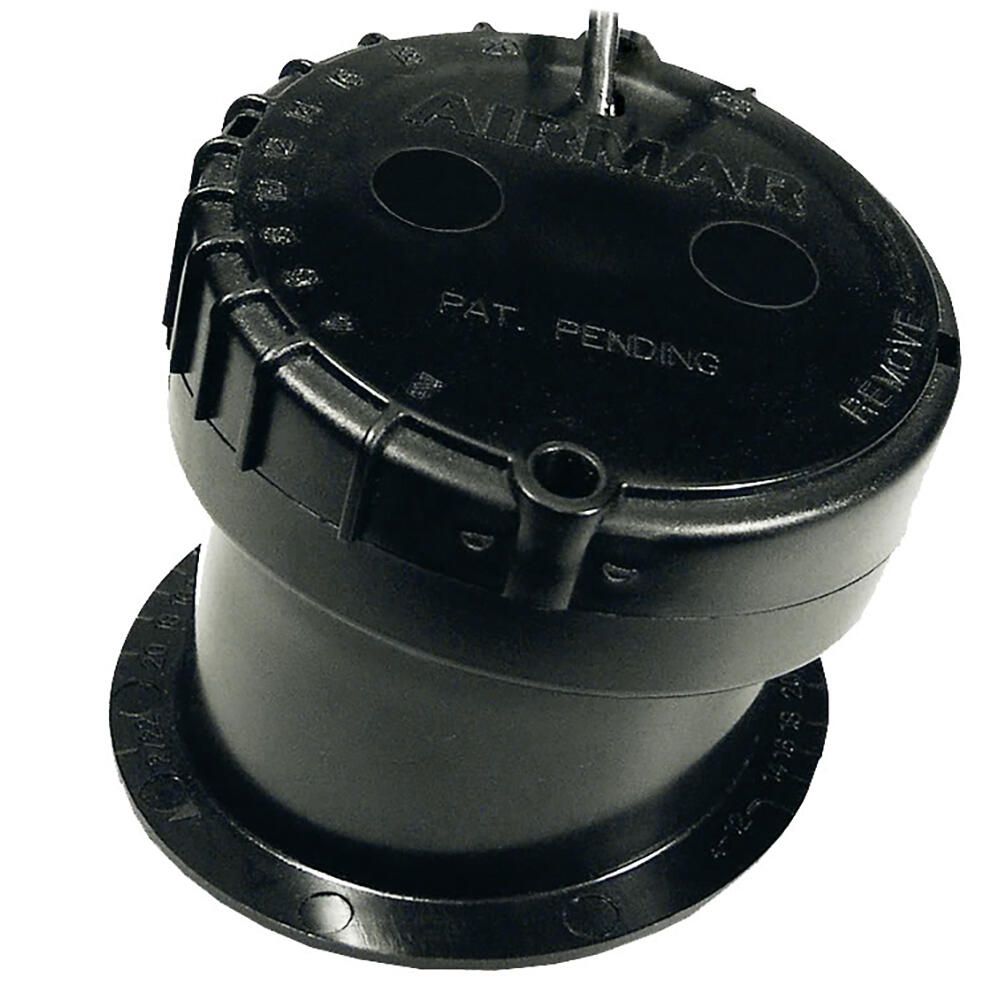

          Image of : Airmar P79 In-Hull Dual Frequency Transducer Airmar P79 In-Hull Dual Frequency Transducer Item # 1077859

          Description

          Airmar's P79 is a dual-frequency, depth-only, in-hull transducer that easily adjusts to hull deadrise angles up to 22 deg. The P79 includes a plastic mounting base which is aligned to the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, ensuring the beam is shooting straight down for maximum echo returns. The eco-friendly coolant provides the best medium to transmit through solid fiberglass and into the surrounding water. The major benefit of in-hull transducers is no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25' (8 m) with a solid fiberglass hull.

          Features:

          • Depth only
          • 600W of power
          • Dual-frequency element:
            • 50 kHz with a 45 deg. beamwidth for depth performance to 1000' (294 m)
            • 200 kHz with a 12 deg. beamwidth for depth performance to 600' (180 m)
          • Adjusts to hull deadrise angles up to 22 deg.
          • Drill-free installation
          • Recommended for planing-hull powerboats, trailered boats, rigid inflatable boats (RIBS), and racing sailboats
          • No hull protrusion
          • Urethane transducer housing with adjustable, plastic, mounting base

          Specifications:

          • Acoustic window: Layered plastic urethane
          • Cable length: 33' (10 m)
          • Connector: Model dependent
          • Conventional beam: 45/12 deg.
          • Deadrise range: 0 to 22 deg.
          • Frequency band: 50/200 kHz
          • Functions: Depth
          • Housing: Urethane
          • Hull material: Solid fiberglass only
          • Material: Plastic
          • Max deadrise: Up to 22 deg.
          • Max deadrise angle: 22 deg.
          • Max depth:
            • Low: 1000' (294 m)
            • High: 600' (180 m)
          • Max vessel LOA: Up to 8 m (26')
          • Mounting style: In-Hull
          • Power rating: 600W
          • Sensor connector: MM
          • Single or dual frequency: Conventional dual frequency
          • Tilted element: No
          • Weight: 5 lbs (2.3 kg)

          Product Brochure

          Installation Instructions

          Part Numbers for Airmar P79 In-Hull Dual Frequency Transducer

          Product Options: 16
          PRODUCT OPTION ITEM # MFR. PRODUCT # AVAILABILITY
          #9 Connector Humminbird 1077860 P79-HB In Stock: Leaves Warehouse: 3 to 4 days
          21-Pin Humminbird 1077861 P79-21HB In Stock: Leaves Warehouse: 3 to 4 days
          Bare Connector 1077862 P79-0 In Stock: Leaves Warehouse: 3 to 4 days
          10-Pin Northstar 1077863 P79-10N In Stock: Leaves Warehouse: 3 to 4 days
          6-Pin Navman 1077864 P79-6N In Stock: Leaves Warehouse: 3 to 4 days
          7-Pin JRC/Simrad 1077865 P79-7 In Stock: Leaves Warehouse: 3 to 4 days
          8-Pin Furuno 1077866 P79-8 In Stock: Leaves Warehouse: 3 to 4 days
          10-Pin Furuno 1077867 P79-10F In Stock: Leaves Warehouse: 3 to 4 days
          6-Pin Garmin 1077868 P79-6G In Stock: Leaves Warehouse: Same Day
          8-Pin Garmin 1077869 P79-8G In Stock: Leaves Warehouse: Same Day
          8-Pin Si-Tex 1077870 P79-8S In Stock: Leaves Warehouse: 3 to 4 days
          9-Pin Navico 1077871 P79-9N In Stock: Leaves Warehouse: 3 to 4 days
          5-Pin MM 1077872 P79-MM In Stock: Leaves Warehouse: Same Day
          Raymarine FISO 1077873 P79-FISO In Stock: Leaves Warehouse: 3 to 4 days
          7-Pin Raymarine 1077874 P79-RAY In Stock: Leaves Warehouse: 3 to 4 days
          9-Pin Raymarine 1077875 P79-RAYA In Stock: Leaves Warehouse: 3 to 4 days
