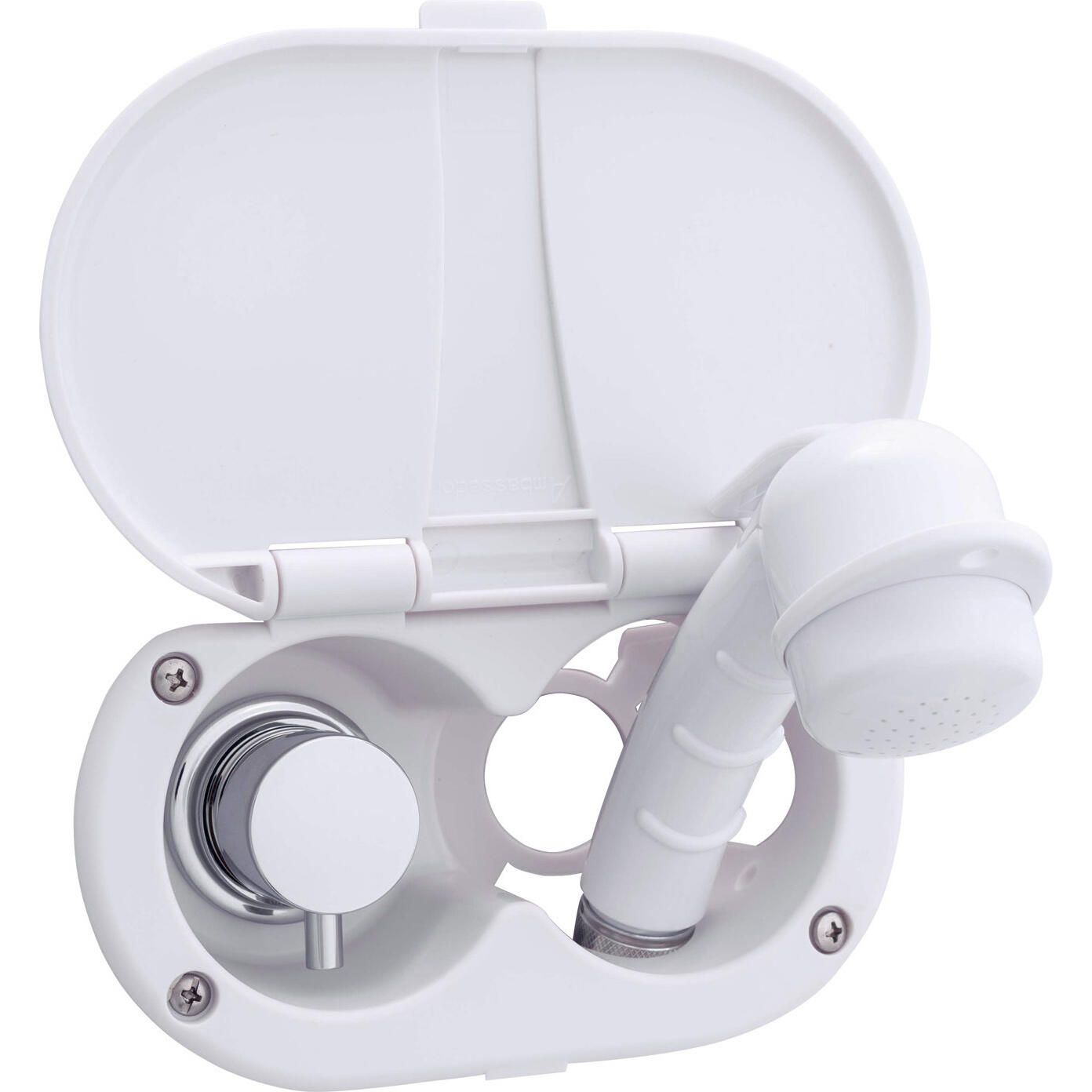

Ambassador Marine Aidack Transom Shower with Small Sprayer

Features:

• Plastic recessed cup and lid
• 6' or 10' rubber or stainless steel hose
• Small sprayer with integrated hook
• Integrated single handle Aidack™ Control Valve / Mini Shower Mixer (Hot/Cold)
• Heavy duty, UV protected, ABS plastic and chrome plated brass sprayer
• Complete water shut-off when trigger is not engaged
• Depressing trigger allows for intermittent water flow, lifting trigger locks it on for continuous water flow
• Vertical wall-mount, horizontal wall-mount (with lid opening up or down) or deck-mounting options
• Heavy duty, UV protected, ABS plastic enclosure
• Heavy duty pull-out hose
• All brass valve body with metal handle
• Ceramic disc valve
• Flexible stainless steel braided supply line hoses
• Stainless steel mounting screws
• Water supply lines not included

Specifications:

• Two hole mount, 3" dia. (2 1/2" - 2 5/8" CC)
• Connections: 1/2" NPS-M

Installation Instructions (4.06 MB)

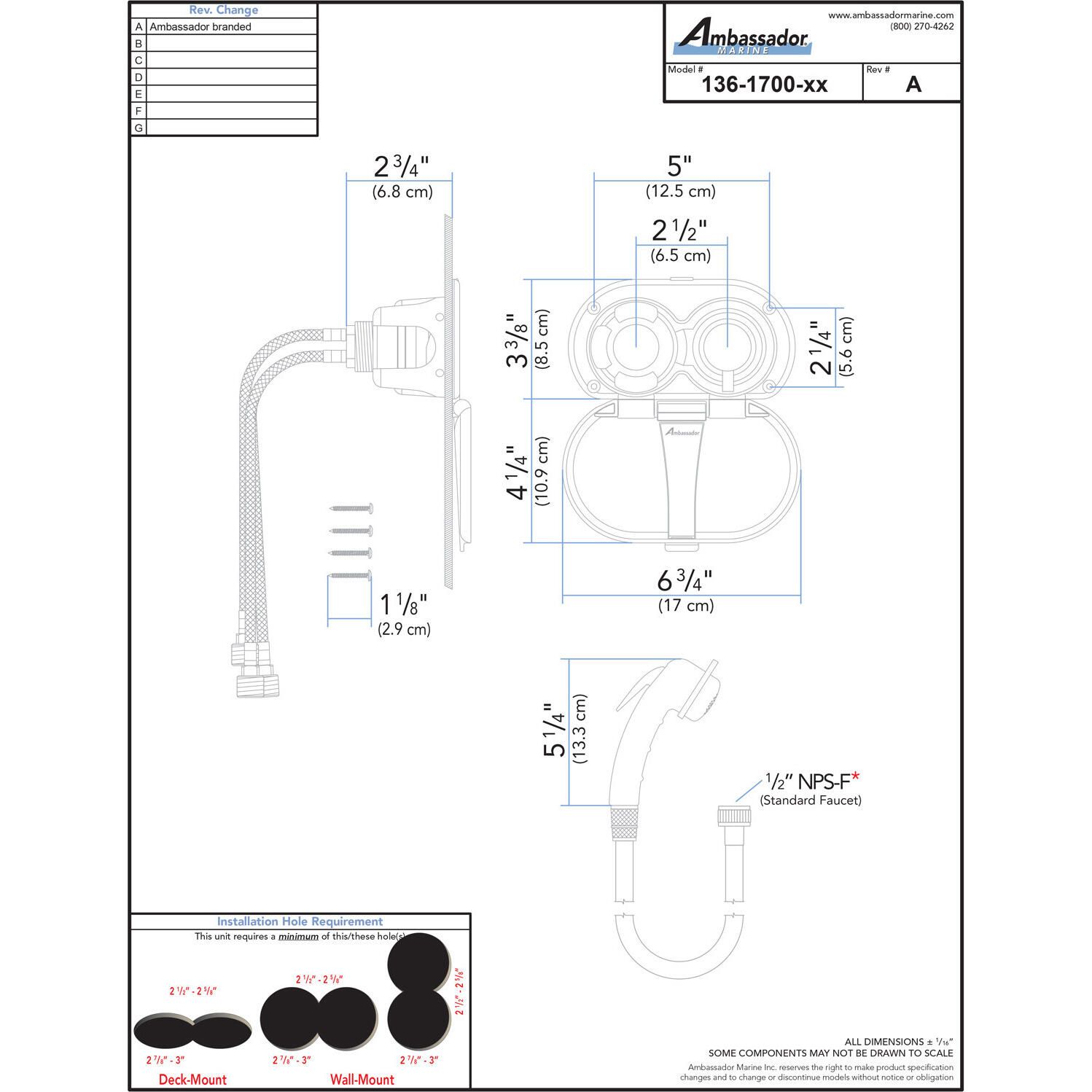

Dimensions Diagram
